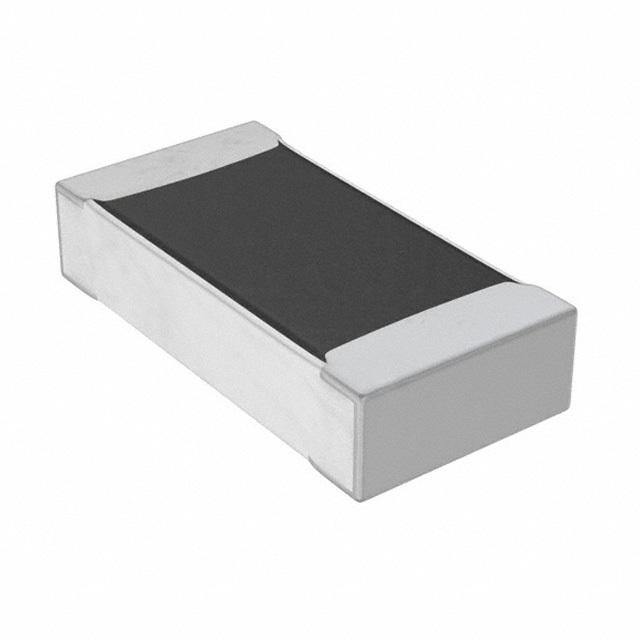

LRC-LRF1206LF-01-R020F TT Electronics
Same model may have multiple batches, images only for reference.

LRC-LRF1206LF-01-R020F

Part No LRC-LRF1206LF-01-R020F
Manufacturer TT Electronics
Catalog Chip Resistor - Surface Mount
Description RES SMD 0.02 OHM 1% 1/2W 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TT Electronics/IRC
Packaging Reel - TR
Resistance (Ohms) 0.02
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient 300ppm/°C
Temperature Range - Operating -55°C to 150°C
Case / Package 1206
Height - Seated (Max) 0.031" (0.80mm)
Number of Terminations 2
Win Source Part Number 128968-LRC-LRF1206LF-01-R020F
Ultra Librarian 3D Model Ultra Librarian LRC-LRF1206LF-01-R020F CAD Model

Description

The LRC-LRF1206LF-01-R020F is an electronic component manufactured by TT Electronics/IRC. Key features include:

  • Power: 0.5W (1/2W)
  • Resistance: 0.02 ohms
  • Tolerance: ±1%
    • Temperature Coefficient: 300ppm/°C
  • Moisture Resistance: Yes
  • Applications: Automotive AEC-Q200
  • Package: 1206
  • Height: 0.031" (0.80mm)
  • Supply: Reel-TR
  • Temperature Range: -55°C to 150°C
