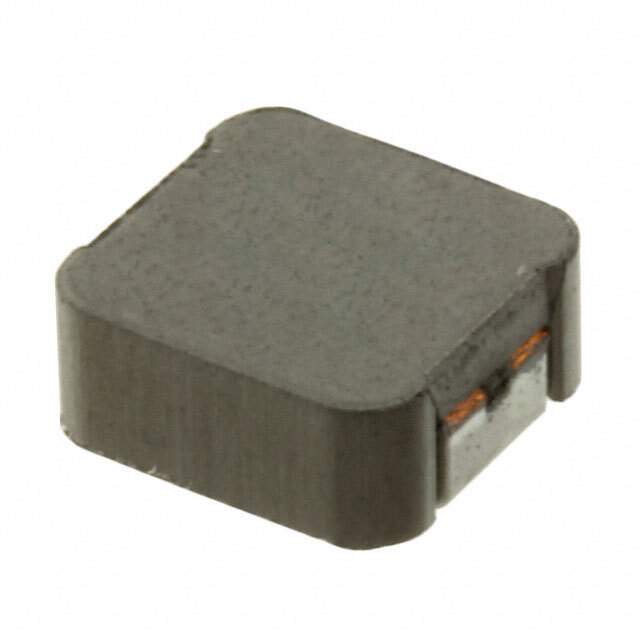

HA72E-064R7LFTR13 Real Image1 HA72E-064R7LFTR13 Real Image2
Same model may have multiple batches, images only for reference.
HA72E-064R7LFTR13 Real Image1 HA72E-064R7LFTR13 Real Image2
HA72E-064R7LFTR13 Real Image1 HA72E-064R7LFTR13 Real Image2
Same model may have multiple batches, images only for reference.

HA72E-064R7LFTR13

Part No HA72E-064R7LFTR13
Manufacturer TT Electronics
Catalog Fixed Inductors
Description FIXED IND 4.7UH 5.4A 42 MOHM SMD / 4.7 µH Unshielded Molded Inductor 5.4 A 42mOhm Max 2-SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TT Electronics
Series HA72E-06
Package Cut Tape (CT)
Type Molded
Material - Core -
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 5.4 A
Current - Saturation (Isat) 6.5A
Shielding Unshielded
DC Resistance (DCR) 42mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 2-SMD
Size / Dimension 0.285" L x 0.268" W (7.23mm x 6.80mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number HA72E
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 2,000 pcs
Win Source Part Number 1382199-HA72E-064R7LFTR13
Ultra Librarian 3D Model Ultra Librarian HA72E-064R7LFTR13 CAD Model

Description

The 1382199-HA72E-064R7LFTR13 is a fixed inductor from the HA72E-06 series.

  • Inductor Type: Molded
  • Shielding: Unshielded
  • Package: Cut Tape (CT)
  • Size: 0.285" L x 0.268" W (7.23mm x 6.80mm)
  • Inductance: 4.7 µH
  • Inductance Tolerance: ±20%
  • AEC-Q200: Rated
  • DC Resistance (DCR): 42mOhm (Max)
  • Operating Temperature: -40°C to 155°C
  • Mounting Type: Surface Mount
