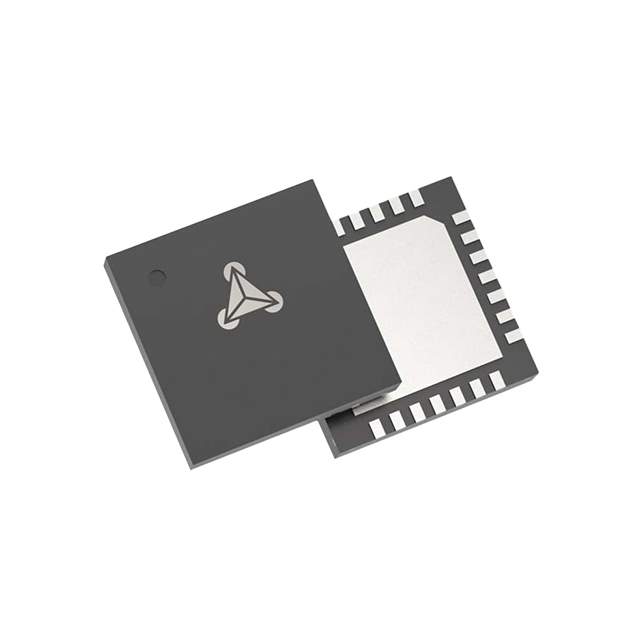

TMC2224-LA-T Real Image
Same model may have multiple batches, images only for reference.

TMC2224-LA-T

Part No TMC2224-LA-T
Manufacturer Trinamic Motion Control GmbH
Catalog PMIC - Motor Drivers, Controllers
Description IC MTR DRV BIPOLAR 5.5-36V 28QFN / Bipolar Motor Driver Power MOSFET Logic, UART 28-QFN (5x5)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr Trinamic Motion Control GmbH
Package Tape & Reel
Motor Type - Stepper Bipolar
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Logic, UART
Technology Power MOSFET
Step Resolution 1 ~ 1/256
Applications General Purpose
Current - Output 1.2A
Voltage - Supply 5.5V ~ 36V
Voltage - Load 5.5V ~ 36V
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 28-VFQFN Exposed Pad
Supplier Device Package 28-QFN (5x5)
Base Product Number TMC2224
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names TMC2224-LA,1460-1216-6,1460-1216-1,1460-1216-2,00-0154T
Standard Package 6,000
Win Source Part Number 962264-TMC2224-LA-T
Ultra Librarian 3D Model Ultra Librarian TMC2224-LA-T CAD Model

Description

The TMC2224-LA-T is an integrated circuit (IC) designed for controlling and powering stepper motors.

  • Output Configuration: Half-Bridge
  • Outputs: 4
  • Motor Type: Bipolar Stepper
  • Step Resolution: 1/256
  • Interface: Logic or UART
  • Current Output: 1.2A
  • Load Voltage: 5.5V to 36V
  • Mounting Type: SMD
  • Package: 28-VFQFN Exposed Pad
  • Application: General Purpose
  • Operating Temperature: -40°C to 125°C
