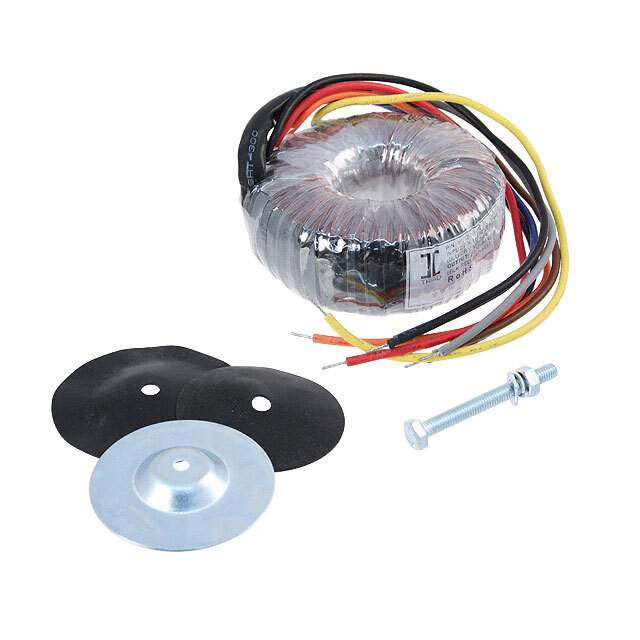

VPT24-1040 Real Image
Same model may have multiple batches, images only for reference.

VPT24-1040

Part No VPT24-1040
Manufacturer Triad Magnetics
Catalog Power Transformers
Description PWR XFMR TORO 25VA CHAS MT /
Datasheet
VPT24-1040 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Mfr Triad Magnetics
Package Box
Type Toroidal
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 12V, Series 24V
Current - Output (Max) Parallel 2.08A, Series 1.04A
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 25VA
Mounting Type Chassis Mount
Termination Style Wire Leads
Dimension 71.00mm Dia x 32.00mm W
Height - Seated (Max) 34.0mm
Voltage - Isolation 4000Vrms
Weight 0.882 lb (400.07 g)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Other Names 237-1325,VPT241040
Standard Package 1
Win Source Part Number 1178995-VPT24-1040
Ultra Librarian 3D Model Ultra Librarian VPT24-1040 CAD Model

Description

The Triad Magnetics VPT24-1040 is a toroidal power transformer with a maximum power rating of 25VA.

  • Voltage Isolation: 4000Vrms
  • Weight: 0.882 lb (400.07 g)
  • Primary Voltage: 115V or 230V
  • Secondary Voltage: 12V or 24V
  • Primary and Secondary Windings: Dual
  • Termination: Wire Leads
  • Mounting Type: Chassis Mount
  • Package: Box
  • Dimension: 71.00mm Dia x 32.00mm W
