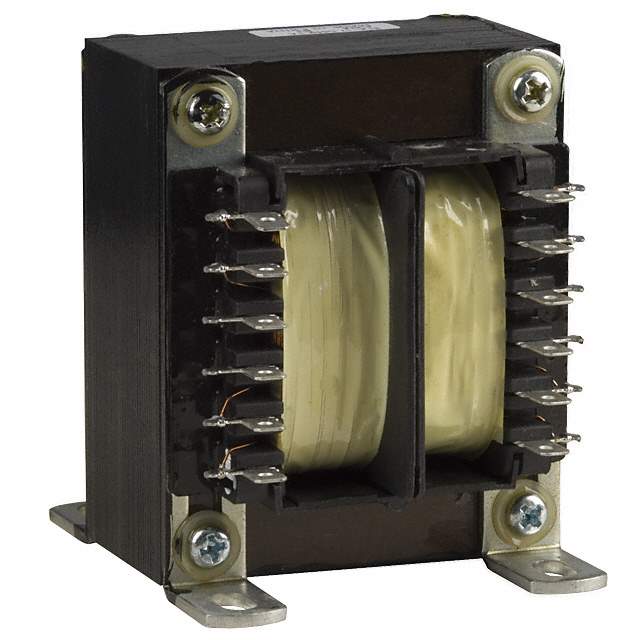

VPS28-2800 Real Image
Same model may have multiple batches, images only for reference.

VPS28-2800

Part No VPS28-2800
Manufacturer Triad Magnetics
Catalog Power Transformers
Description PWR XFMR LAMINATED 80VA CHAS MT /
Datasheet
VPS28-2800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Mfr Triad Magnetics
Package Box
Type Laminated Core
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 14V, Series 28V
Current - Output (Max) Parallel 5.6A, Series 2.8A
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 80VA
Mounting Type Chassis Mount
Termination Style Solder, Quick Connect
Dimension 63.50mm L x 58.67mm W
Height - Seated (Max) 76.20mm
Voltage - Isolation 4000Vrms
Weight 2.8 lbs (1.3 kg)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Other Names 237-1280,237-1280-NDR,VPS282800
Standard Package 1
Win Source Part Number 1172549-VPS28-2800
Ultra Librarian 3D Model Ultra Librarian VPS28-2800 CAD Model

Description

The Triad Magnetics Power Transformer with Win Source Part Number 1172549-VPS28-2800 is a laminated core type. Triad Magnetics Power Transformer is designed by .

  • Core Type: Laminated Core
  • Seated Height: 76.20mm
  • Maximum Power: 80VA
  • Weight: 2.8 lbs (1.3 kg)
  • Voltage Isolation: 4000Vrms
  • Voltage Primary: 115V or 230V
  • Current Output: Parallel 5.6A or Series 2.8A
  • Voltage Secondary: Parallel 14V or Series 28V
  • Winding Type: Dual Primary and Secondary
  • Mounting Type: Chassis Mount
  • Dimensions: 63.50mm L x 58.67mm W
  • ECCN: EAR99
  • REACH: Not affected
  • HTSUS Code: 8504.31.4065
  • Other Names: 237-1280, 237-1280-NDR, and VPS282800
