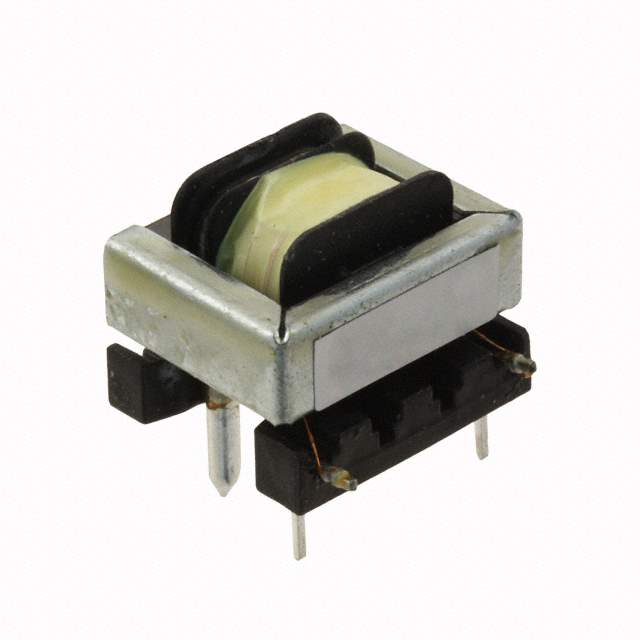

CSE187L Real Image
Same model may have multiple batches, images only for reference.

CSE187L

Part No CSE187L
Manufacturer Triad Magnetics
Catalog Current Sense Transformers
Description CURR SENSE XFMR 1:500 30A T/H  /  30 A 1:500 Current Sense Transformer 50Hz ~ 400Hz 3mOhm Primary, 21Ohm Secondary Through Hole
Datasheet
CSE187L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Current Sense Transformers
Mfr Triad Magnetics
Series CSE
Package Bulk
Frequency Range 50Hz ~ 400Hz
Type Invasive
Current Rating (Amps) 30 A
DC Resistance (DCR) 3mOhm Primary, 21Ohm Secondary
Mounting Type Through Hole
Dimension 0.860" L x 0.720" W (21.84mm x 18.29mm)
Height - Seated (Max) 0.710" (18.03mm)
Termination Style PC Pin
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Other Names 237-1103-NDR,CSE187-L,Q1770793,237-1103
Standard Package 1
Win Source Part Number 1230918-CSE187L
Ultra Librarian 3D Model Ultra Librarian CSE187L CAD Model

Description

The Triad Magnetics CSE187L is an invasive type current sense transformer that belongs to the CSE series.

  • Current Rating: 30A
  • Standard Package: 1
  • Termination Style: PC Pin
  • Dimension: 0.860" L x 0.720" W (21.84mm x 18.29mm)
