Same model may have multiple batches, images only for reference.

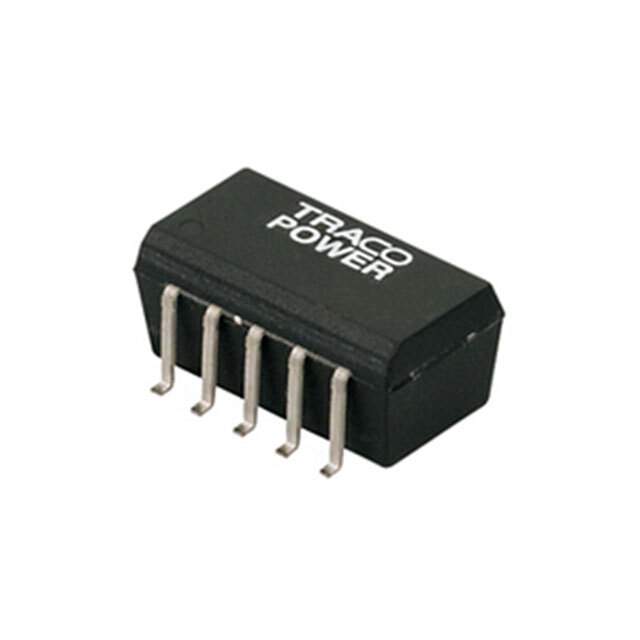

TSM 2412D Real Image
Same model may have multiple batches, images only for reference.

TSM 2412D

Part No TSM 2412D
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 960MW / Isolated Module DC DC Converter 2 Output 12V -12V 40mA, 40mA 21.6V - 26.4V Input
Datasheet
TSM 2412D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 40mA, 40mA
Power (Watts) 960 mW
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 80%
Mounting Surface Mount
Case / Package 18-SMD Module, 10 Leads
Size / Dimension 0.60" L x 0.31" W x 0.28" H (15.2mm x 8.0mm x 7.1mm)
Base Product Number TSM 2412
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2706
Standard Package 10
Win Source Part Number 1336401-TSM 2412D
Ultra Librarian 3D Model Ultra Librarian TSM 2412D CAD Model

Description

The Traco Power TSM 2412D is an isolated module type DC-DC converter used in ITE (Commercial) applications.

  • Power Rating: 960 mW
  • Features: Short circuit protection (SCP)
  • Size: 0.60" L x 0.31" W x 0.28" H (15.2mm x 8.0mm x 7.1mm)
  • Mounting Type: Surface mount
  • Outputs: Two outputs
  • Voltage Ratings: 12V and -12V
  • Input Voltage: 21.6V to 26.4V
  • Isolation Voltage: 1 kV
  • Efficiency: 80%
  • Operating Temperature: -40°C to 85°C
  • Package: 18-SMD module with 10 leads
