Same model may have multiple batches, images only for reference.

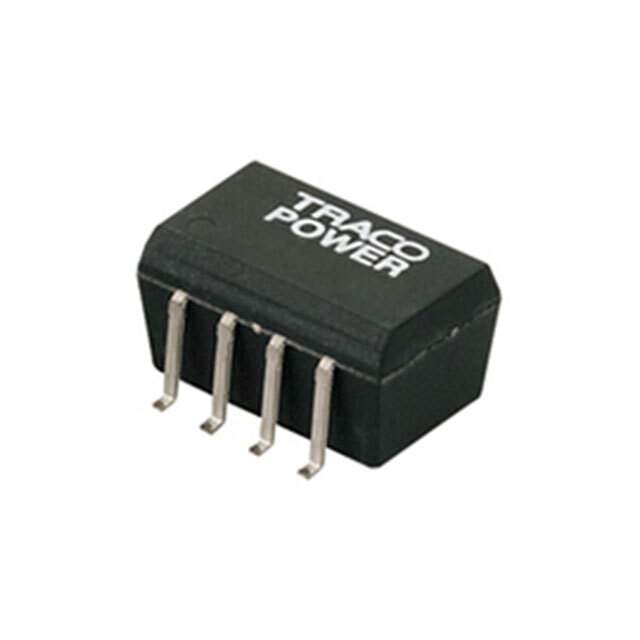

TSM 2409S Real Image
Same model may have multiple batches, images only for reference.

TSM 2409S

Part No TSM 2409S
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 9V 1W / Isolated Module DC DC Converter 1 Output 9V 110mA 21.6V - 26.4V Input
Datasheet
TSM 2409S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 9V
Current - Output (Max) 110mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 78%
Mounting Surface Mount
Case / Package 14-SMD Module, 8 Leads
Size / Dimension 0.60" L x 0.31" W x 0.32" H (15.2mm x 8.0mm x 8.1mm)
Base Product Number TSM 2409
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TSM 2409S-ND,TSM2409S
Standard Package 10
Win Source Part Number 1336398-TSM 2409S
Ultra Librarian 3D Model Ultra Librarian TSM 2409S CAD Model

Description

The Traco Power TSM 2409S is an isolated module DC-DC converter that is designed to supply power to ITE (Commercial) applications.

  • Power Output: 1 W
  • Efficiency: 78%
  • Voltage Isolation: 1 kV
  • Maximum Output Current: 110mA
  • Input Voltage: 21.6V and 26.4V
  • Output Voltage: 9V
  • Features: SCP
  • Mounting: 14-SMD module with 8 leads
  • Size: 0.60" L x 0.31" W x 0.32" H (15.2mm x 8.0mm x 8.1mm)
  • Operating Temperature: -40°C to 85°C
  • Compliance: ROHS3 compliant
  • REACH status: Unaffected
  • ECCN: EAR99
  • MSL Level: 3 (168 Hours)
