Same model may have multiple batches, images only for reference.

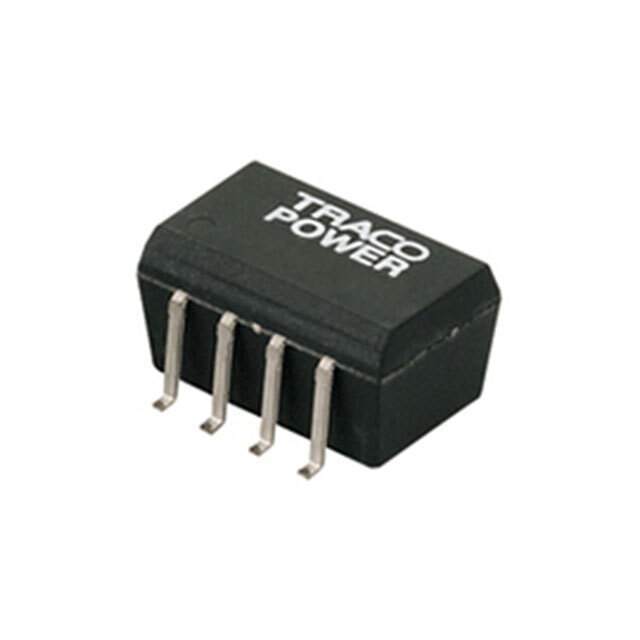

TSM 1209S Real Image
Same model may have multiple batches, images only for reference.

TSM 1209S

Part No TSM 1209S
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 9V 990MW / Isolated Module DC DC Converter 1 Output 9V 110mA 10.8V - 13.2V Input
Datasheet
TSM 1209S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 9V
Current - Output (Max) 110mA
Power (Watts) 990 mW
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 78%
Mounting Surface Mount
Case / Package 14-SMD Module, 8 Leads
Size / Dimension 0.50" L x 0.31" W x 0.32" H (12.7mm x 8.0mm x 8.1mm)
Base Product Number TSM 1209
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2515
Standard Package 10
Win Source Part Number 1336406-TSM 1209S
Ultra Librarian 3D Model Ultra Librarian TSM 1209S CAD Model

Description

The Traco Power TSM 1209S is a DC-DC converter with an isolated module type that comes in a 14-SMD module package with 8 leads.

  • Power Rating: 990 mW
  • Efficiency: 78%
  • Voltage Isolation: 1 kV
  • Output Channels: Single
  • Maximum Current Output: 110mA
  • Input Voltage: 10.8V to 13.2V
  • Output Voltage: 9V
  • Protection: Short circuit protection
  • Application: ITE (Commercial)
  • Operating Temperature Range: -40°C to 85°C
