Same model may have multiple batches, images only for reference.

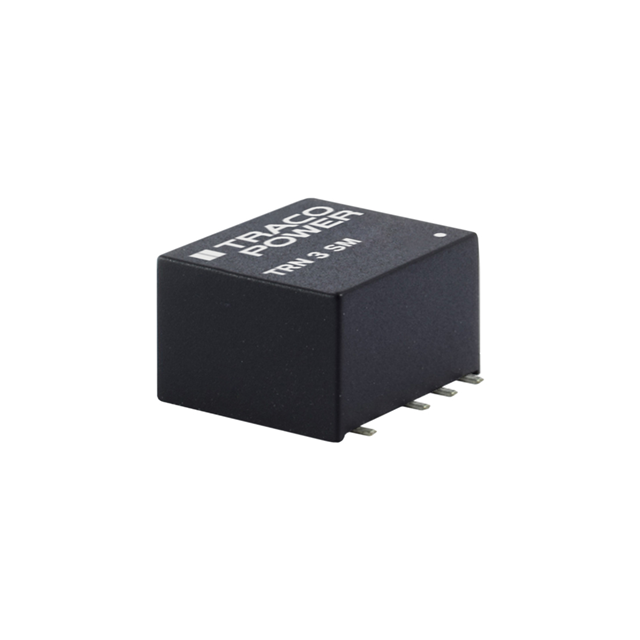

TRN 3-2423SM Real Image
Same model may have multiple batches, images only for reference.

TRN 3-2423SM

Part No TRN 3-2423SM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 18V - 36V Input
Datasheet
TRN 3-2423SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 100mA, 100mA
Power (Watts) 3 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 82%
Mounting Surface Mount
Case / Package 7-SMD Module
Size / Dimension 0.47" L x 0.44" W x 0.31" H (11.9mm x 11.3mm x 8.0mm)
Base Product Number TRN 3
RoHS Status ROHS3 Compliant
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TRN3-2423SM,2266-TRN 3-2423SM,TRN 3-2423SM-ND
Standard Package 10
Win Source Part Number 1336394-TRN 3-2423SM
Ultra Librarian 3D Model Ultra Librarian TRN 3-2423SM CAD Model

Description

The Traco Power DC DC converter is a high-performance isolated module that is designed to meet the needs of various commercial electronic devices.

  • Standard Package: 10
  • Mounting: Surface mountable
  • Power Rating: 3W
  • Outputs: Two outputs
  • Maximum Current Output: 100mA each
  • Efficiency: 82%
  • Temperature Range: -40°C to 85°C
  • Compliance: ROHS3 compliant
  • REACH Regulations: Unaffected
