Same model may have multiple batches, images only for reference.

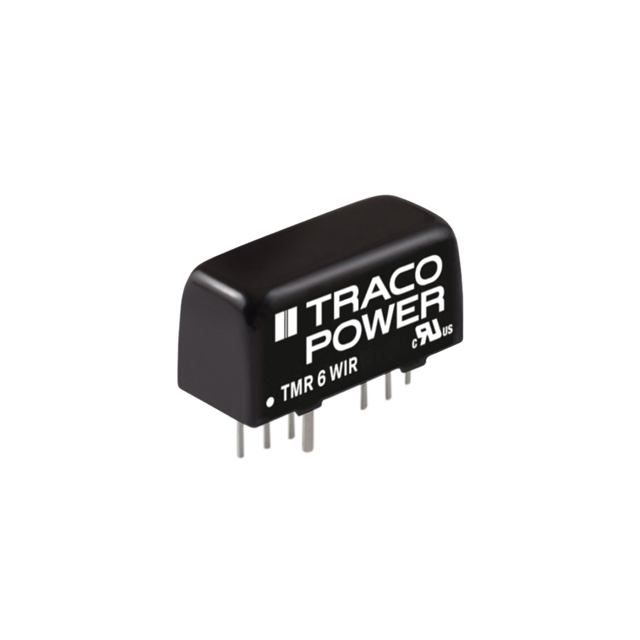

TMR 6-4822WIR Real Image
Same model may have multiple batches, images only for reference.

TMR 6-4822WIR

Part No TMR 6-4822WIR
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 6W / Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 18V - 75V Input
Datasheet
TMR 6-4822WIR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 250mA, 250mA
Power (Watts) 6 W
Voltage - Isolation 3 kV
Applications ITE (Commercial), Railway
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -40°C ~ 80°C (With Derating)
Efficiency 87%
Mounting Through Hole
Case / Package 8-SIP Module
Size / Dimension 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Base Product Number TMR 6
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 2266-TMR 6-4822WIR,1951-2029
Standard Package 10
Win Source Part Number 1336268-TMR 6-4822WIR
Ultra Librarian 3D Model Ultra Librarian TMR 6-4822WIR CAD Model

Description

The Traco Power component is an active electronic product that is commonly used in power supplies - board mount DC DC converters.

  • Packaging: Tube
  • Type: Isolated module
  • Outputs: Two
  • Maximum Output: 250mA
  • Voltage Input: 18V to 75V
  • Voltage Isolation: 3kV
  • Application: ITE (Commercial) and Railway
  • Package: 10
