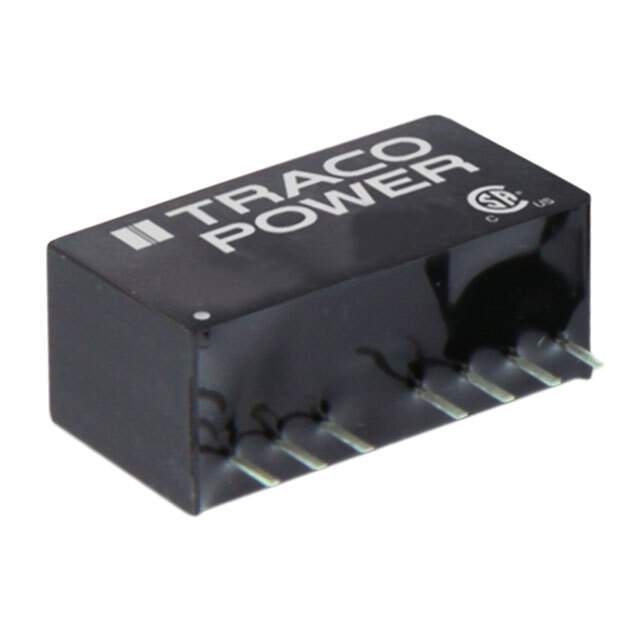

Same model may have multiple batches, images only for reference.

TMR 4822

Name: TMR 4822
Brand: Traco Power
SKU: 1336288
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TMR 4822
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 85mA, 85mA 36V - 75V Input
Datasheet	TMR 4822 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	85mA, 85mA
Power (Watts)	2 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	81%
Mounting	Through Hole
Case / Package	8-SIP Module, 7 Leads
Size / Dimension	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Base Product Number	TMR 48
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TMR4822,TMR 4822-ND,1951-3202,TMR4822-ND
Standard Package	10
Win Source Part Number	1336288-TMR 4822
Ultra Librarian 3D Model	Ultra Librarian TMR 4822 CAD Model

Alternative Products

Description

The Traco Power TMR 4822 is an isolated DC-DC converter module.

Outputs: Two
Output Voltages: +12V and -12V
Maximum Output Current: 85mA
Input Voltage Range: 36V to 75V
Power Rating: 2W
Efficiency: 81%
Features: Remote on/off and SCP protection
Module Dimensions: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Mounting Style: Through-Hole
Package: 8-SIP module with 7 leads
Supplied In: Tube
Operating Temperature Range: -40°C to 85°C
ROHS3 Compliant: Yes
