Same model may have multiple batches, images only for reference.

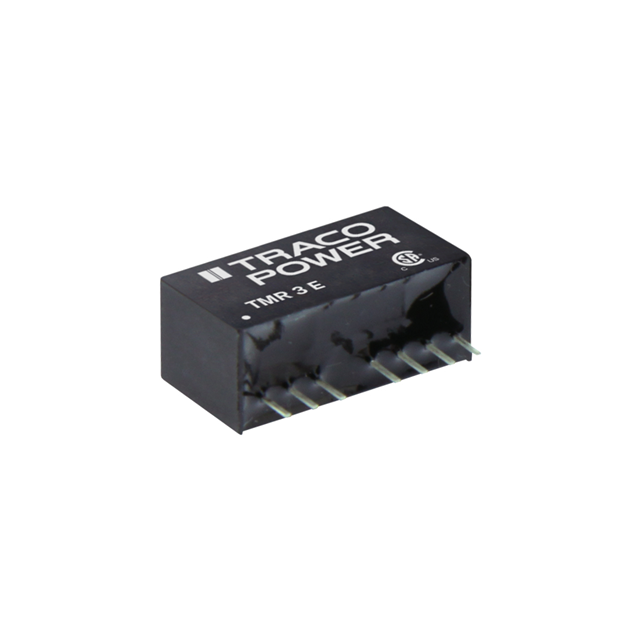

TMR 3-1223E Real Image
Same model may have multiple batches, images only for reference.

TMR 3-1223E

Part No TMR 3-1223E
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 9V - 18V Input
Datasheet
TMR 3-1223E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 100mA, 100mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 83%
Mounting Through Hole
Case / Package 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm)
Base Product Number TMR 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2372
Standard Package 10
Win Source Part Number 1336195-TMR 3-1223E
Ultra Librarian 3D Model Ultra Librarian TMR 3-1223E CAD Model

Description

This electronic component, the Traco Power TMR 3-1223E, is a DC-DC converter designed for board mount applications.

  • Features: remote On/Off feature and SCP protection
  • Size: 0.86 inches in length, 0.37 inches in width, and 0.44 inches in height
  • Applications: ITE (Commercial)
  • Package Quantity: 10
  • Mounting Type: through hole
  • Power Output: 3 watts
  • Voltage Isolation: 1.5 kV
  • Outputs: 2 outputs
  • Current - Output (Max): 100mA each
  • Voltage - Input: 9V to 18V
  • Voltage - Output: 15V for the first output and -15V for the second output
  • Efficiency: 83%
  • Temperature Range - Operating: -40°C to 85°C (with derating)
  • Package / Case: 8-SIP module with 7 leads
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
