Same model may have multiple batches, images only for reference.

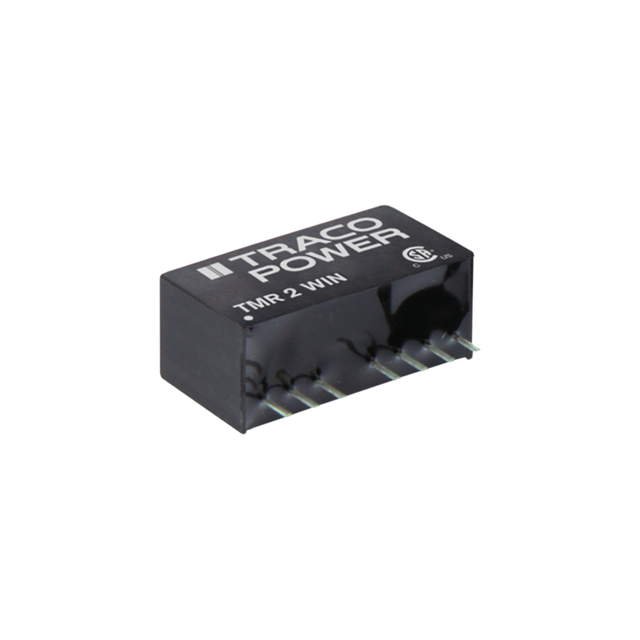

TMR 2-1223WIN Real Image
Same model may have multiple batches, images only for reference.

TMR 2-1223WIN

Part No TMR 2-1223WIN
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 2W / Isolated Module DC DC Converter 2 Output 15V -15V 67mA, 67mA 4.5V - 18V Input
Datasheet
TMR 2-1223WIN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 18V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 67mA, 67mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -40°C ~ 90°C (With Derating)
Efficiency 82%
Mounting Through Hole
Case / Package 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm)
Base Product Number TMR 2
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TMR 2-1223WIN-ND,TMR2-1223WIN
Standard Package 10
Win Source Part Number 1336140-TMR 2-1223WIN
Ultra Librarian 3D Model Ultra Librarian TMR 2-1223WIN CAD Model

Description

The Traco Power 1336140-TMR 2-1223WIN is a DC-DC converter with an isolated module type and a power output of 2W.

  • Voltage Isolation: 1.5kV
  • Voltage Input Range: 4.5V to 18V
  • Standard Package: 10
  • Mounting: Through-hole
  • Temperature Range: -40°C to 90°C with derating
  • Compliance: RoHS compliant
  • Efficiency: 82%
  • Application: ITE (Commercial)
  • Features: Remote on/off, OCP, and SCP
