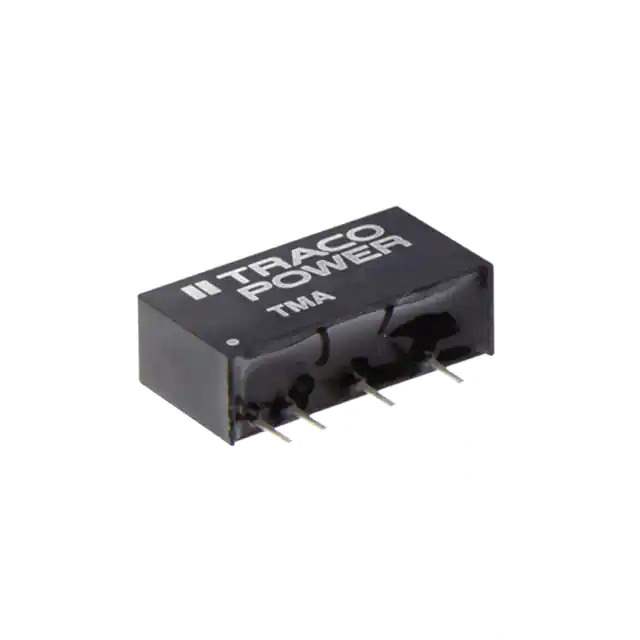

TMA 0505D Real Image
Same model may have multiple batches, images only for reference.

TMA 0505D

Part No TMA 0505D
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 4.5V - 5.5V Input
Datasheet
TMA 0505D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Traco Power
Series TMA (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 72%
Mounting Type Through Hole
Package / Case 6-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm)
Base Product Number TMA 0505
Standard Package 10 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 848132-TMA 0505D
Ultra Librarian 3D Model Ultra Librarian TMA 0505D CAD Model

Description

The TMA 0505D is a 1W isolated module DC-DC converter from Traco Power.

  • Series: TMA
  • Application: ITE (Commercial)
  • Outputs: 5V, -5V
  • Output Current: 100mA (each output, Max)
  • Input Voltage: 4.5V to 5.5V
  • Voltage Isolation: 1 kV
  • Size: 0.77" L x 0.24" W x 0.40" H
  • Mounting Type: Through Hole
  • Protection: SCP (Short Circuit Protection)
  • Operating Temperature: -40°C to 85°C (with derating)
  • Efficiency: 72%
  • Package: 6-SIP module, 5 leads
  • Product Status: Active
  • REACH: Unaffected
