Same model may have multiple batches, images only for reference.

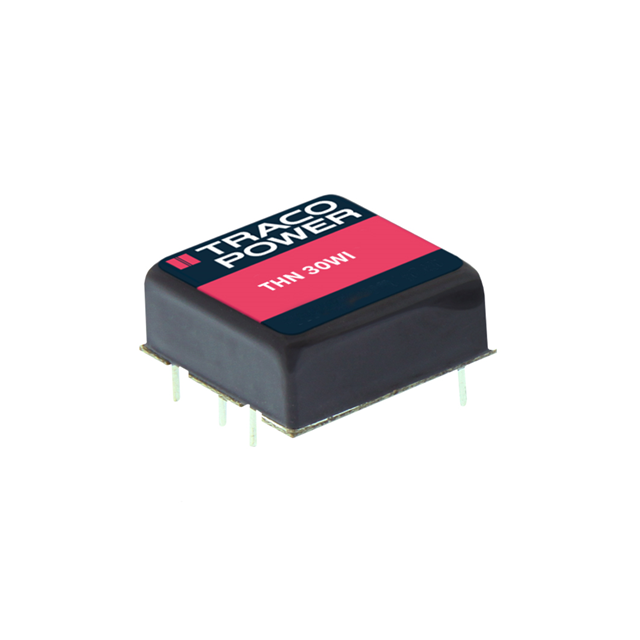

THN 30-4825WI Real Image
Same model may have multiple batches, images only for reference.

THN 30-4825WI

Part No THN 30-4825WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-24V 30W / Isolated Module DC DC Converter 2 Output 24V -24V 625mA, 625mA 18V - 75V Input
Datasheet
THN 30-4825WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 24V
Voltage - Output 2 -24V
Current - Output (Max) 625mA, 625mA
Power (Watts) 30 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 80°C (With Derating)
Efficiency 92%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Approval Agency CB, cURus
Base Product Number THN 30
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number THN 30-4825WI-ND,THN30-4825WI
Standard Package 10
Win Source Part Number 1336060-THN 30-4825WI
Ultra Librarian 3D Model Ultra Librarian THN 30-4825WI CAD Model

Description

The Traco Power THN 30-4825WI is an isolated module DC-DC converter designed for ITE (Commercial) applications.

  • Power Output: 30W
  • Voltage Isolation: 1.5kV
  • Mounting Style: Through-hole
  • Case/Package: 6-DIP module
  • Voltage Outputs: 24V and -24V
  • Current Output: 625mA each
  • Voltage Input Range: 18V to 75V
  • ECCN Compliant: EAR99
  • Operating Temperature: -40°C to 80°C (with derating)
  • RoHS Compliant: Yes
