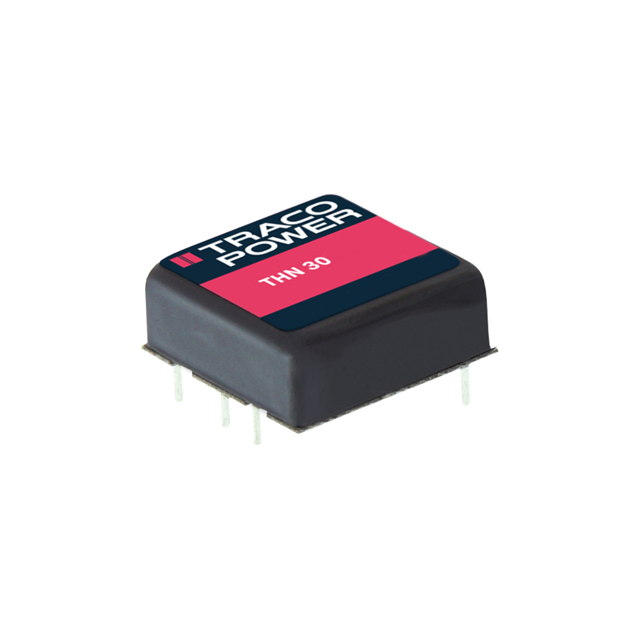

Same model may have multiple batches, images only for reference.

THN 30-1223

Name: THN 30-1223
Brand: Traco Power
SKU: 1336036
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	THN 30-1223
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 30W / Isolated Module DC DC Converter 2 Output 15V -15V 1A, 1A 9V - 18V Input
Datasheet	THN 30-1223 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	1A, 1A
Power (Watts)	30 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OTP, OVP, SCP
Temperature Range - Operating	-40°C ~ 80°C (With Derating)
Efficiency	90%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number	THN 30
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	THN30-1223-ND,THN30-1223,THN 30-1223-ND,1951-3135
Standard Package	10
Win Source Part Number	1336036-THN 30-1223
Ultra Librarian 3D Model	Ultra Librarian THN 30-1223 CAD Model

Alternative Products

Description

The Traco Power THN 30-1223 is a DC-DC converter module that comes in a 6-DIP package.

Power Output: 30 watts
Features: Remote On/Off, OTP, OVP, and SCP
Size: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Application: ITE (Commercial)
Input Voltage Range: 9V to 18V
Isolation Voltage: 1.5 kV
Outputs: Two
Maximum Current Output (per output): 1A
Output Voltages: 15V and -15V
Efficiency: 90%
Operating Temperature Range: -40°C to 80°C (with derating)
ROHS3 Compliant: Yes
Standard Package: 10
