Same model may have multiple batches, images only for reference.

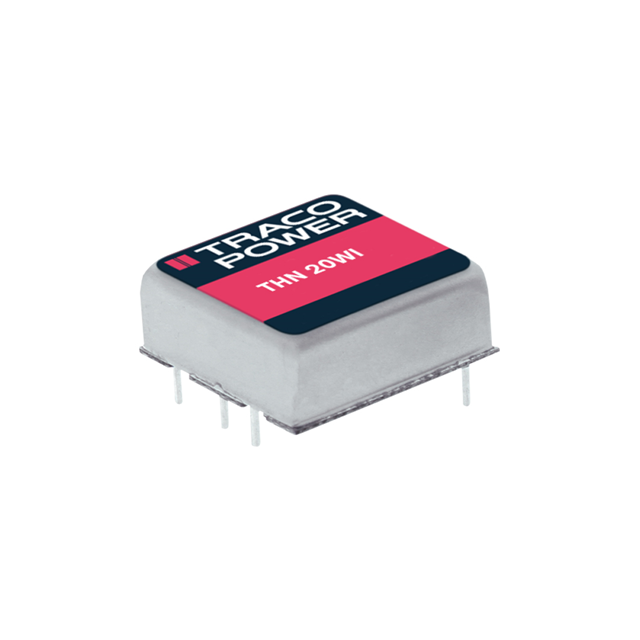

THN 20-4823WI Real Image
Same model may have multiple batches, images only for reference.

THN 20-4823WI

Part No THN 20-4823WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 20W / Isolated Module DC DC Converter 2 Output 15V -15V 667mA, 667mA 18V - 75V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 667mA, 667mA
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OVP, SCP
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 89%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Approval Agency CB, cURus
Base Product Number THN 20
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number THN 20-4823WI-ND,THN20-4823WI
Standard Package 10
Win Source Part Number 1336087-THN 20-4823WI
Ultra Librarian 3D Model Ultra Librarian THN 20-4823WI CAD Model

Description

The Traco Power THN 20-4823WI is a DC-DC converter in the category of power supplies - board mount.

  • Type: 20 W isolated module
  • Features: Remote on/off, OVP, and SCP features
  • Design: Compact design
  • Application: ITE (Commercial) applications
  • Voltage Isolation: 1.5 kV
  • Outputs: Two outputs
  • Output Current (Max): 667mA
  • Input Voltage: 18V to 75V
  • Output Voltage: 15V and -15V
  • Efficiency: 89%
  • Temperature Range: -40°C to 75°C (with derating)
