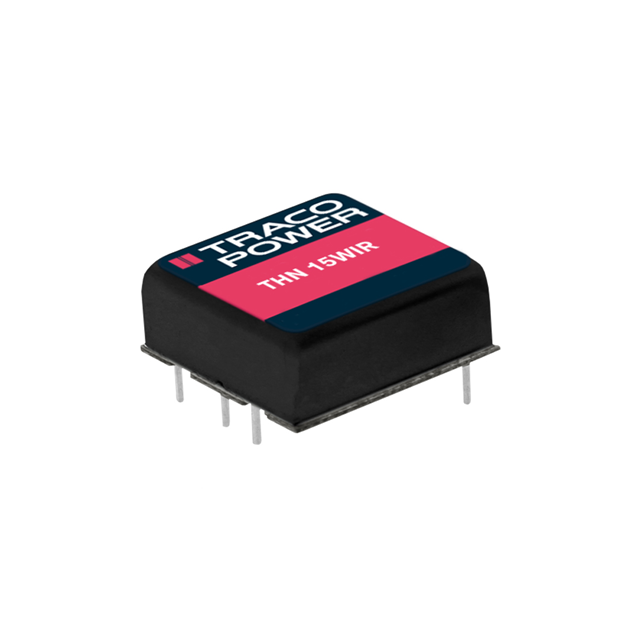

Same model may have multiple batches, images only for reference.

THN 15-7225WIR

Name: THN 15-7225WIR
Brand: Traco Power
SKU: 1336028
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	THN 15-7225WIR
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-24V 15W / Isolated Module DC DC Converter 2 Output 24V -24V 315mA, 315mA 36V - 160V Input
Datasheet	THN 15-7225WIR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	36V
Voltage - Input (Max)	160V
Voltage - Output 1	24V
Voltage - Output 2	-24V
Current - Output (Max)	315mA, 315mA
Power (Watts)	15 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial), Railway
Features	Remote On/Off, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 90°C (With Derating)
Efficiency	90%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number	THN 15
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	THN 15-7225WIR-ND,THN15-7225WIR
Standard Package	10
Win Source Part Number	1336028-THN 15-7225WIR
Ultra Librarian 3D Model	Ultra Librarian THN 15-7225WIR CAD Model

Alternative Products

Description

The Traco Power THN 15-7225WIR is an isolated module DC DC converter that has a power rating of 15W with a 3kV voltage isolation.

Outputs: Two
Maximum Output Current (each): 315mA
Input Voltage Range: 36V to 160V
Package: 6-DIP module
Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Applications: ITE (Commercial) and Railway
Efficiency: 90%
