Same model may have multiple batches, images only for reference.

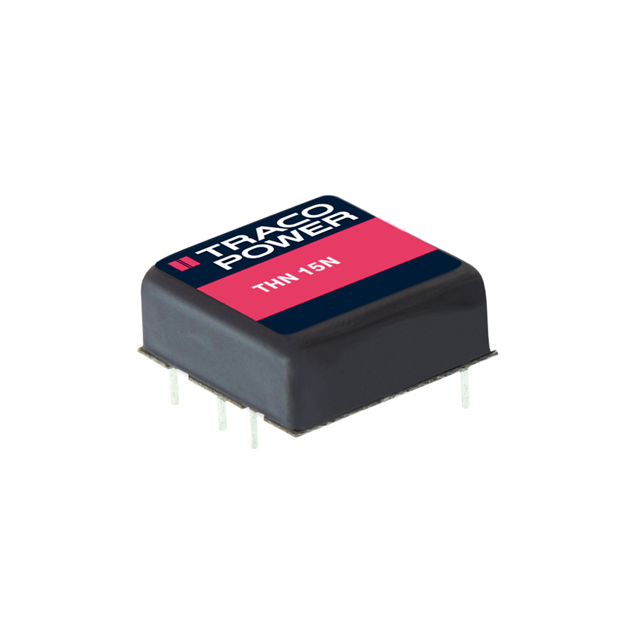

THN 15-2422N Real Image
Same model may have multiple batches, images only for reference.

THN 15-2422N

Part No THN 15-2422N
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 15W / Isolated Module DC DC Converter 2 Output 12V -12V 625mA, 625mA 18V - 36V Input
Datasheet
THN 15-2422N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 625mA, 625mA
Power (Watts) 15 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 90%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number THN 15
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-3285,THN15-2422NINACTIVE,THN15-2422N,THN15-2422N-ND
Standard Package 10
Win Source Part Number 1335988-THN 15-2422N
Ultra Librarian 3D Model Ultra Librarian THN 15-2422N CAD Model

Description

The THN 15-2422N is a high-quality DC-DC converter manufactured by Traco Power.

  • Status: Limited supply and demand
  • RoHS Status: ROHS3 compliant
  • Power Output: 15 watts
  • Efficiency: 90 percent
  • Number of Outputs: 2
  • Maximum Output Current: 625 mA each
  • Input Voltage Range: 18V to 36V
  • Output Voltage: 12V and -12V, respectively
  • Features: Remote on/off, OCP, OVP, and SCP
  • Operating Temperature Range: -40°C to 105°C with derating
  • Application: ITE (Commercial) applications
