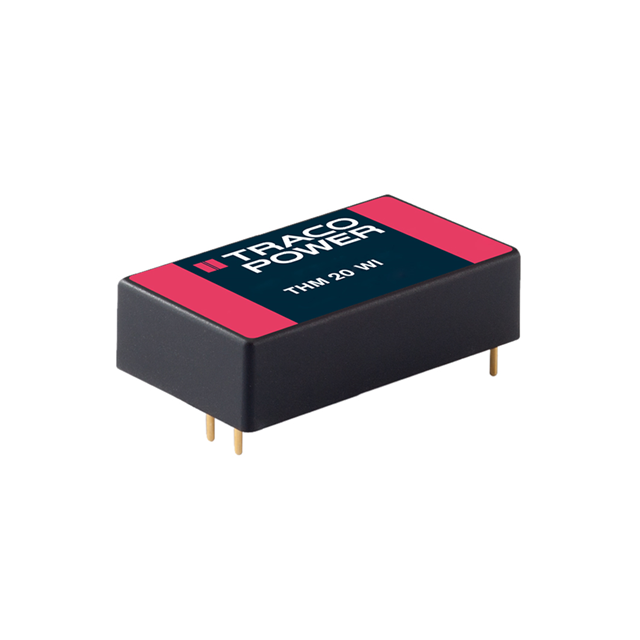

THM 20-4822WI Real Image
Same model may have multiple batches, images only for reference.

THM 20-4822WI

Part No THM 20-4822WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 20W / Isolated Module DC DC Converter 2 Output 12V -12V 833mA, 833mA 18V - 75V Input
Datasheet
THM 20-4822WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series THM 20WI (20W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 833mA, 833mA
Power (Watts) 20 W
Voltage - Isolation 5 kV
Applications Medical
Features OCP, OTP, OVP, SCP
Temperature Range - Operating -40°C ~ 80°C (With Derating)
Efficiency 88.5%
Mounting Type Through Hole
Package / Case 5-DIP Module
Dimension 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm)
Base Product Number THM 20
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names THM20-4822WI-ND,THM 20-4822WI-ND,THM20-4822WI,1951-2796
Standard Package 10
Win Source Part Number 1063180-THM 20-4822WI
Ultra Librarian 3D Model Ultra Librarian THM 20-4822WI CAD Model

Description

The Traco Power THM 20-4822WI is a DC-DC converter with an isolated module type.

  • Features: OCP, OTP, OVP, and SCP
  • Package: Tube
  • Size/Dimension: 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm)
  • Application: Medical
  • Standard Package: 10
  • Mounting Type: Through Hole
  • Power Rating: 20 watts
  • Input Voltage: 18V to 75V
  • Output Voltage: 12V and -12V
