Same model may have multiple batches, images only for reference.

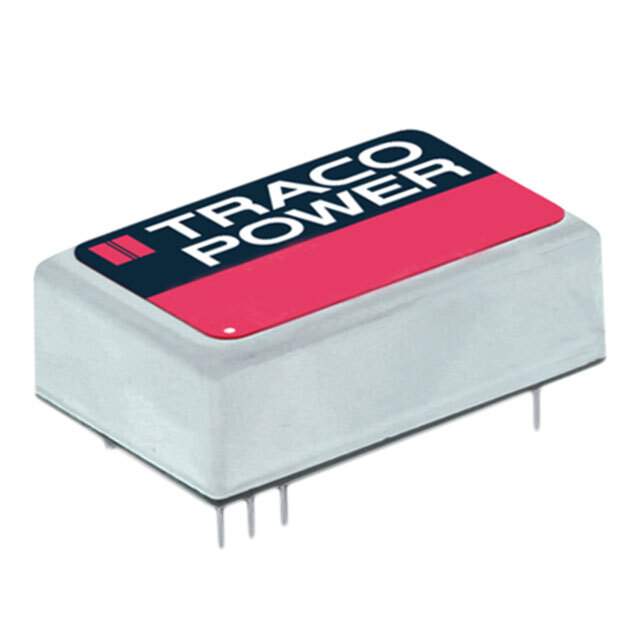

THD 10-4822N Real Image
Same model may have multiple batches, images only for reference.

THD 10-4822N

Part No THD 10-4822N
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 10W / Isolated Module DC DC Converter 2 Output 12V -12V 416mA, 416mA 36V - 75V Input
Datasheet
THD 10-4822N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 416mA, 416mA
Power (Watts) 10 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 87%
Mounting Through Hole
Case / Package 24-DIP Module, 9 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number THD 10
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number THD 10-4822N-ND,THD10-4822N,2266-THD 10-4822N
Standard Package 10
Win Source Part Number 1335896-THD 10-4822N
Ultra Librarian 3D Model Ultra Librarian THD 10-4822N CAD Model

Description

The Traco Power THD 10-4822N is an isolated module DC-DC converter with a power output of 10 watts.

  • Power Output: 10 watts
  • Number of Outputs: 2
  • Maximum Output Current: 416mA each
  • Input Voltage: 36V to 75V
  • Output Voltage: 12V, -12V
  • Features: Remote On/Off, OCP, SCP
  • Efficiency: 87%
  • Application: ITE (Commercial)
  • Package: 10
  • Voltage Isolation: 1.5 kV
  • Temperature Range: -40°C to 85°C (with derating)
  • Manufacturer: Traco Power
  • Win Source Part Number: 1335896-THD 10-4822N
