Same model may have multiple batches, images only for reference.

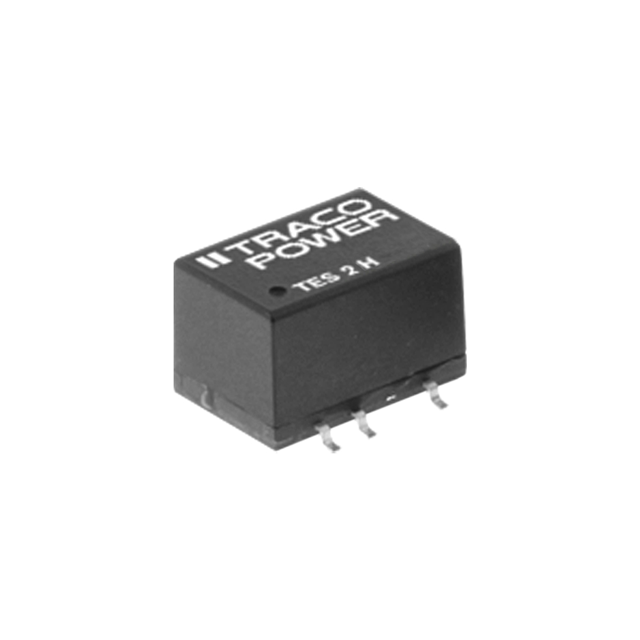

TES 2-0522H Real Image
Same model may have multiple batches, images only for reference.

TES 2-0522H

Part No TES 2-0522H
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 83mA, 83mA 4.5V - 5.5V Input
Datasheet
TES 2-0522H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 83mA, 83mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 76%
Mounting Surface Mount
Case / Package 10-SMD Module, 6 Leads
Size / Dimension 0.64" L x 0.37" W x 0.35" H (16.3mm x 9.3mm x 8.9mm)
Base Product Number TES 2
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TES 2-0522H-ND,TES2-0522H
Standard Package 10
Win Source Part Number 1335873-TES 2-0522H
Ultra Librarian 3D Model Ultra Librarian TES 2-0522H CAD Model

Description

This electronic component is a product from Traco Power, with Win Source Part Number 1335873-TES 2-0522H.

  • Converter Type: Isolated module type DC DC Converter with SCP feature
  • Outputs: 2 outputs
  • Package: 10-SMD module, 6 leads package
  • Suitable for: ITE (Commercial) applications
  • Power: 2 W
  • Supply and Demand Status: Limited
  • Standard Package: 10
  • MSL Level: 2 (1 Year)
