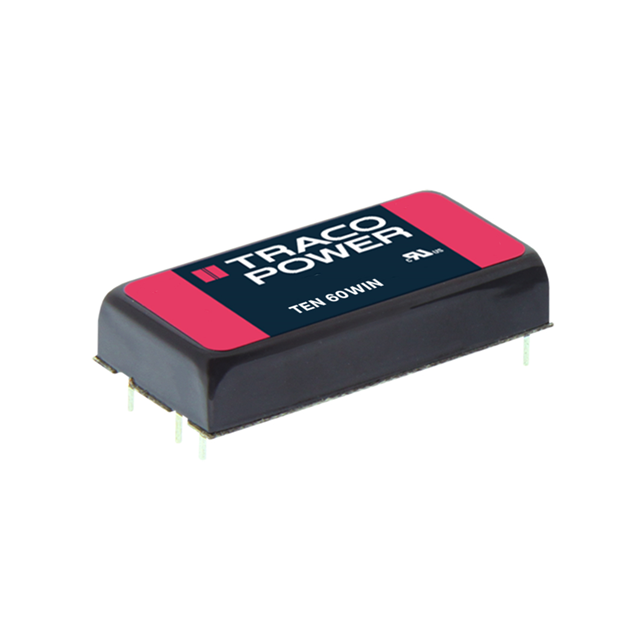

Same model may have multiple batches, images only for reference.

TEN 60-4825WIN

Name: TEN 60-4825WIN
Brand: Traco Power
SKU: 1335807
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TEN 60-4825WIN
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-24V 60W / Isolated Module DC DC Converter 2 Output 24V -24V 1.25A, 1.25A 18V - 75V Input
Datasheet	TEN 60-4825WIN Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	24V
Voltage - Output 2	-24V
Current - Output (Max)	1.25A, 1.25A
Power (Watts)	60 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	91%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package	Module
Base Product Number	TEN 60
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TEN 60-4825WIN-ND,TEN60-4825WIN
Standard Package	10
Win Source Part Number	1335807-TEN 60-4825WIN
Ultra Librarian 3D Model	Ultra Librarian TEN 60-4825WIN CAD Model

Alternative Products

Description

This is an Isolated Module DC DC Converter from Traco Power.

Power (Watts): 60W
Package: Tube
Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Applications: ITE (Commercial)
Number of Outputs: 2
Current - Output (Max): 1.25A
Voltage - Isolation: 1.5 kV
Mounting Type: Through-Hole
Efficiency: 91%
ROHS Status: ROHS3 compliant
