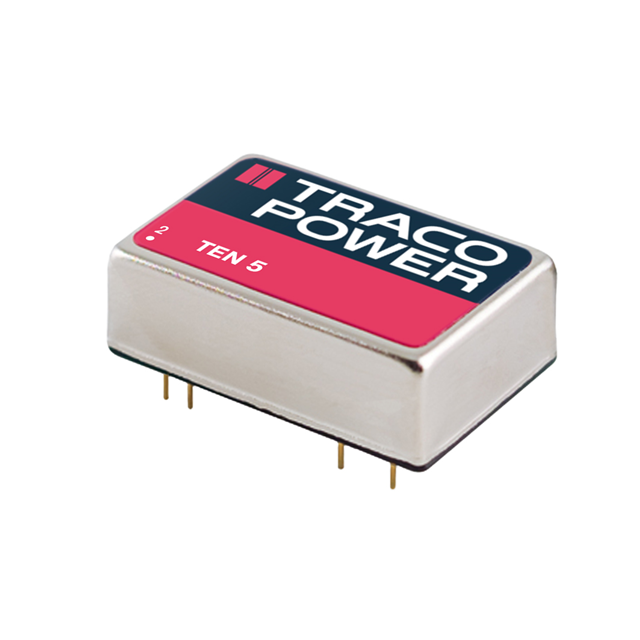

TEN 5-4823 Real Image
Same model may have multiple batches, images only for reference.

TEN 5-4823

Part No TEN 5-4823
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 6W / Isolated Module DC DC Converter 2 Output 15V -15V 200mA, 200mA 36V - 75V Input
Datasheet
TEN 5-4823 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 200mA, 200mA
Power (Watts) 6 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 86%
Mounting Through Hole
Case / Package 24-DIP Module, 7 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package Module
Base Product Number TEN 5
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2204
Standard Package 10
Win Source Part Number 1335811-TEN 5-4823
Ultra Librarian 3D Model Ultra Librarian TEN 5-4823 CAD Model

Description

The Traco Power TEN 5-4823 isolated module DC-DC converter is a 6W converter.

  • Number of Outputs: Two
  • Output Voltages: 15V and -15V
  • Voltage Isolation: 1.5kV
  • Maximum Current Output: 200mA for both outputs
  • Voltage Input: 36V to 75V
  • Applications: ITE (Commercial)
  • Size: 1.25" L x 0.80" W x 0.40" H
  • Mounting: Through Hole
  • Efficiency: 86%
  • Package: 24-DIP module, 7 leads
  • Operating Temperature: -40°C to 85°C with derating
  • ROHS Status: ROHS3 compliant
