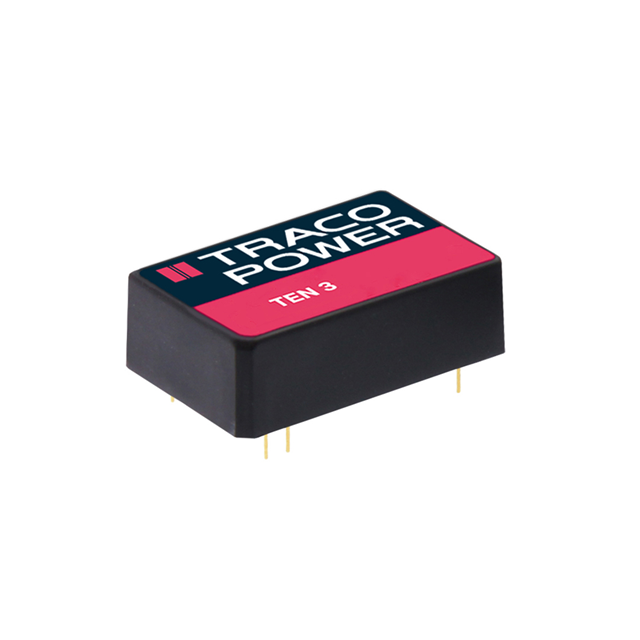

TEN 3-0522 Real Image
Same model may have multiple batches, images only for reference.

TEN 3-0522

Part No TEN 3-0522
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 4.5V - 9V Input
Datasheet
TEN 3-0522 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 75%
Mounting Through Hole
Case / Package 24-DIP Module, 8 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Approval Agency CB, cCSAus
Base Product Number TEN 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-1550
Standard Package 10
Win Source Part Number 1335709-TEN 3-0522
Ultra Librarian 3D Model Ultra Librarian TEN 3-0522 CAD Model

Description

The Traco Power 1335709-TEN 3-0522 is an isolated module DC DC converter with a power of 3 W.

  • Outputs: Two
  • Current - Output (Max): 125mA, 125mA
  • Voltage - Input (Min): 4.5V
  • Voltage - Input (Max): 9V
  • Voltage - Output 1: 12V
  • Voltage - Output 2: -12V
  • Efficiency: 75%
  • Packaging: Tube
  • Size / Dimension: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
  • Application: ITE (Commercial)
  • Mounting Technology: Through-Hole
  • Approval Agency: CB, cCSAus
  • Compliance: ROHS3 compliant
