Same model may have multiple batches, images only for reference.

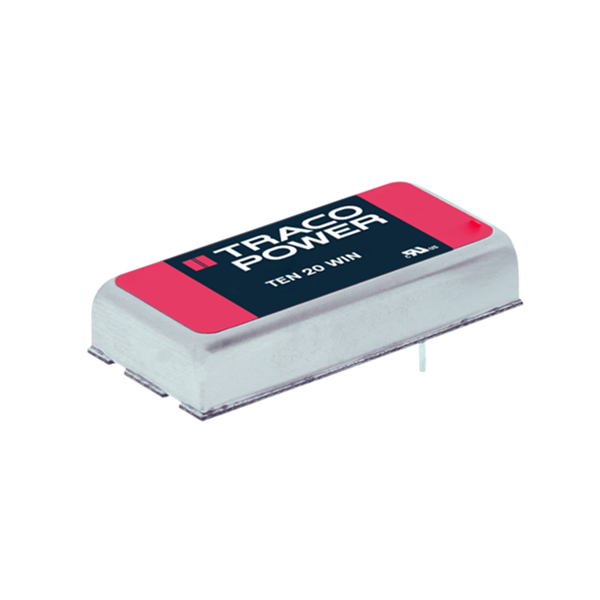

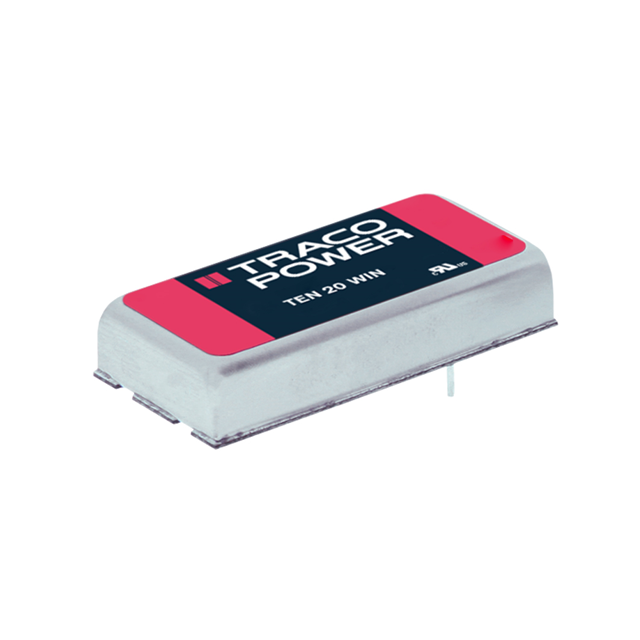

TEN 20-4811WIN Real Image
Same model may have multiple batches, images only for reference.

TEN 20-4811WIN

Part No TEN 20-4811WIN
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 20W / Isolated Module DC DC Converter 1 Output 5V 4A 18V - 75V Input
Datasheet
TEN 20-4811WIN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TEN 20WIN (20W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Current - Output (Max) 4A
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 88%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number TEN 20
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-2549,7613441009001
Standard Package 10
Win Source Part Number 1101702-TEN 20-4811WIN
Ultra Librarian 3D Model Ultra Librarian TEN 20-4811WIN CAD Model

Description

The TEN 20WIN (20W) is an isolated module DC-DC converter from Traco Power.

  • Features: Remote On/Off, OCP, OVP, SCP
  • Mounting: Through-hole
  • Efficiency: 88%
  • Isolation Voltage: 1.5 kV
  • Input Voltage: 18V to 75V
  • Output Voltage: 5V
  • Maximum Output Current: 4A
  • Operating Temperature: -40°C ~ 85°C with derating
  • Application: ITE (Commercial)
  • Package: 6-DIP module
  • Dimensions: 2.00" L x 1.00" W x 0.40" H
  • ROHS3 Compliant: Yes
