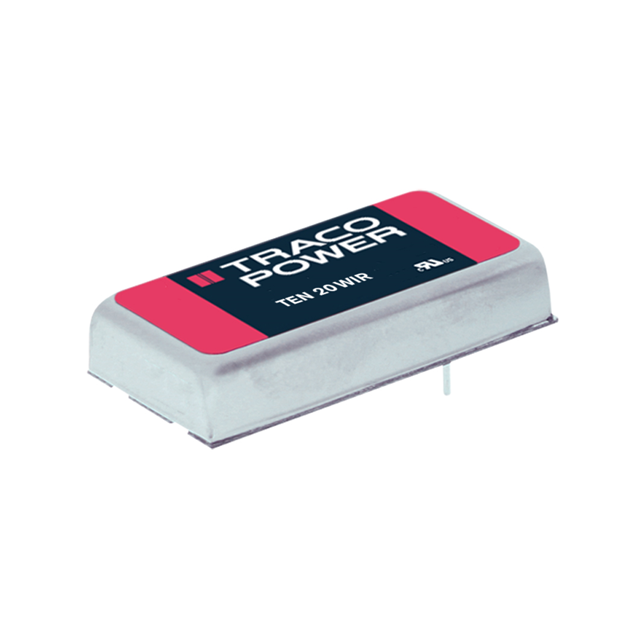

Same model may have multiple batches, images only for reference.

TEN 20-2412WIR

Name: TEN 20-2412WIR
Brand: Traco Power
SKU: 1335645
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TEN 20-2412WIR
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 20W / Isolated Module DC DC Converter 1 Output 12V 1.67A 9V - 36V Input
Datasheet	TEN 20-2412WIR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Current - Output (Max)	1.67A
Power (Watts)	20 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial), Railway
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	89%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number	TEN 20
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TEN20-2412WIR,TEN20-2412WIR-ND,TEN 20-2412WIR-ND,1951-2975
Standard Package	10
Win Source Part Number	1335645-TEN 20-2412WIR
Ultra Librarian 3D Model	Ultra Librarian TEN 20-2412WIR CAD Model

Alternative Products

Description

The 1335645-TEN 20-2412WIR is an electronic component manufactured by Traco Power.

Type: DC DC Converter
Power Supply Type: Board Mount, Isolated Module
Package: 10
Mounting Type: Through Hole
Power: 20W
Voltage Isolation: 2.25 kV
Number of Outputs: One
Maximum Current Output: 1.67A
Input Voltage Range: 9V to 36V
Output Voltage: 12V
Efficiency: 89%
Operating Temperature: -40°C ~ 85°C (With Derating)
Case/Package: 6-DIP Module
ECCN: EAR99
ROHS3 Compliant: Yes
HTSUS: 8504.40.9580
Other Part Numbers: TEN20-2412WIR, TEN20-2412WIR-ND, TEN 20-2412WIR-ND, 1951-2975
Base Product Number: TEN 20
