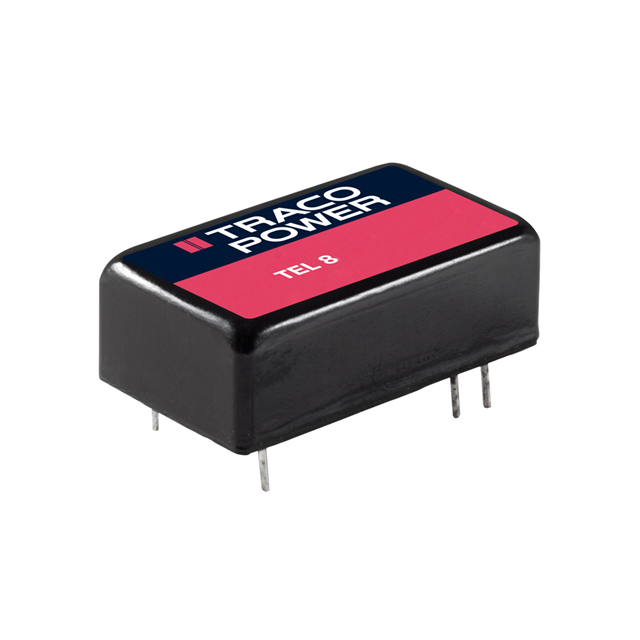

Same model may have multiple batches, images only for reference.

TEL 8-2423

Name: TEL 8-2423
Brand: Traco Power
SKU: 1335596
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TEL 8-2423
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 8W / Isolated Module DC DC Converter 2 Output 15V -15V 265mA, 265mA 18V - 36V Input
Datasheet	TEL 8-2423 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	265mA, 265mA
Power (Watts)	8 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 80°C
Efficiency	86%
Mounting	Through Hole
Case / Package	16-DIP Module, 6 Leads
Size / Dimension	0.95" L x 0.55" W x 0.33" H (24.1mm x 14.0mm x 8.5mm)
Base Product Number	TEL 8
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TEL8-2423,TEL 8-2423-ND
Standard Package	10
Win Source Part Number	1335596-TEL 8-2423
Ultra Librarian 3D Model	Ultra Librarian TEL 8-2423 CAD Model

Alternative Products

Description

The TEL 8-2423 is an isolated module DC-DC converter manufactured by Traco Power.

Type: Board Mount
Package: 16-DIP Module, 6 Leads
Standard Package: 10
Power Output: 8W
Outputs: Two
Maximum Output Current: 265mA
Input Voltage Range: 18V to 36V
Output Voltage 1: 15V
Output Voltage 2: -15V
Efficiency: 86%
Applications: ITE (Commercial)
Protection: Overcurrent Protection (SCP)
Operating Temperature Range: -40°C to 80°C
Compliance: ECCN: EAR99, MSL Level: Not Applicable, HTSUS: 8504.40.9580, ROHS3 Compliant
