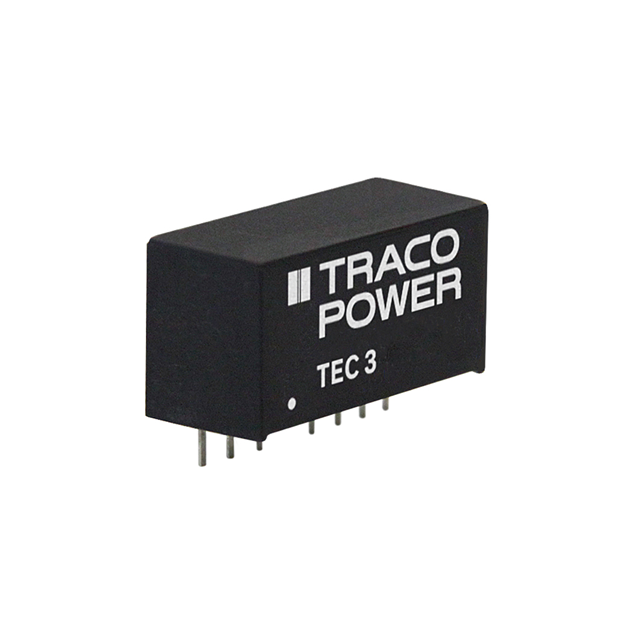

Same model may have multiple batches, images only for reference.

TEC 3-2422

Name: TEC 3-2422
Brand: Traco Power
SKU: 1335527
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TEC 3-2422
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 18V - 36V Input
Datasheet	TEC 3-2422 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	125mA, 125mA
Power (Watts)	3 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 90°C (With Derating)
Efficiency	84%
Mounting	Through Hole
Case / Package	8-SIP Module, 7 Leads
Size / Dimension	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
Base Product Number	TEC 3
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-1485
Standard Package	10
Win Source Part Number	1335527-TEC 3-2422
Ultra Librarian 3D Model	Ultra Librarian TEC 3-2422 CAD Model

Alternative Products

Description

The Traco Power TEC 3-2422 is a DC-DC converter with an isolated module type that comes in an 8-SIP module package with 7 leads.

Power Rating: 3W
Efficiency: 84%
Voltage Isolation: 1.6 kV
Output Channels: Two
Maximum Current Output: 125mA each
Input Voltage: 18V to 36V
Output Voltage: 12V and -12V
Features: Remote on/off and short circuit protection
Application: ITE (Commercial)
Operating Temperature: -40°C to 90°C with derating
