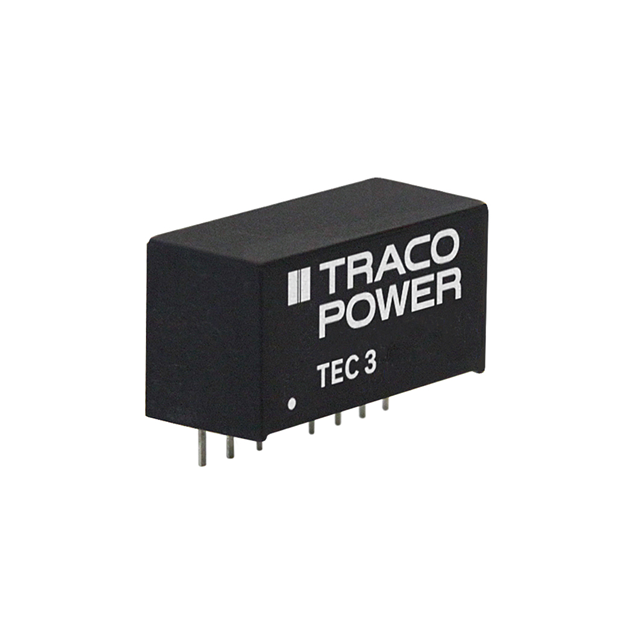

Same model may have multiple batches, images only for reference.

TEC 3-0922

Name: TEC 3-0922
Brand: Traco Power
SKU: 1335506
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TEC 3-0922
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 4.5V - 13.2V Input
Datasheet	TEC 3-0922 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	13.2V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	125mA, 125mA
Power (Watts)	3 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 90°C (With Derating)
Efficiency	82%
Mounting	Through Hole
Case / Package	8-SIP Module, 7 Leads
Size / Dimension	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
Base Product Number	TEC 3
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-1451
Standard Package	10
Win Source Part Number	1335506-TEC 3-0922
Ultra Librarian 3D Model	Ultra Librarian TEC 3-0922 CAD Model

Alternative Products

Description

The Traco Power TEC 3-0922 is a DC-DC converter module that offers a power output of 3W.

Power Output: 3W
Input Voltage Range: 4.5V to 13.2V
Output Voltages: 12V and -12V
Module Type: Isolated
Features: Remote on/off and SCP
Efficiency Rating: 82%
Temperature Range: -40°C to 90°C (with derating)
Package: 8-SIP module with 7 leads
Mounting Type: Through the hole
Suitable for: Commercial applications, especially for ITE
ROHS3 Compliant: Yes
ECCN: EAR99
