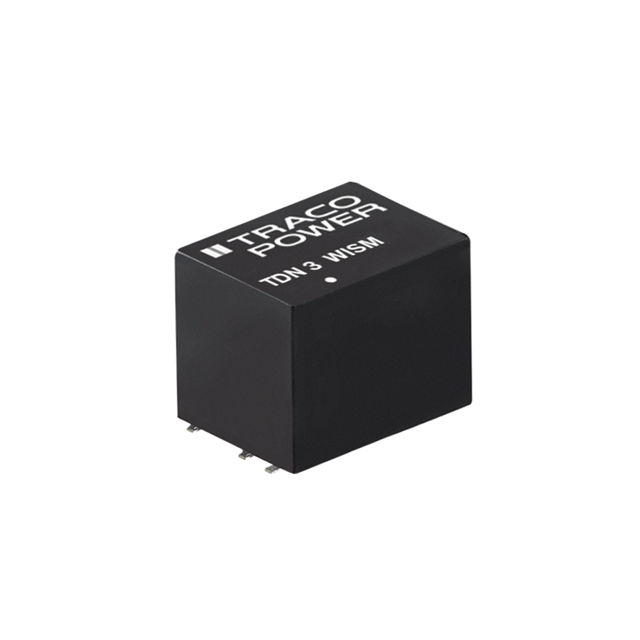

TDN 3-2422WISM Real Image
Same model may have multiple batches, images only for reference.

TDN 3-2422WISM

Part No TDN 3-2422WISM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 9V - 36V Input
Datasheet
TDN 3-2422WISM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 70°C
Efficiency 82%
Mounting Surface Mount
Case / Package 7-SMD Module, 6 Leads
Size / Dimension 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number TDN 3
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TDN3-2422WISM,TDN 3-2422WISM-ND
Standard Package 10
Win Source Part Number 1335474-TDN 3-2422WISM
Ultra Librarian 3D Model Ultra Librarian TDN 3-2422WISM CAD Model

Description

This Traco Power manufactured electronic component is a DC DC converter that comes with a remote On/Off feature and SCP.

  • Packaging: Tube
  • Type: Isolated module
  • Size: 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
  • Application: ITE (Commercial)
  • Standard Package: 10
  • Mounting Type: Surface mount
  • Power (watts): 3 W
  • Voltage Isolation: 1.6 kV
  • Outputs: Two outputs
  • Maximum Output Current: 125mA each
  • Input Voltage: 9V to 36V
  • Output Voltage: 12V and -12V
  • Efficiency: 82 percent
  • Temperature Range: -40°C to 70°C
  • Case/Package: 7-SMD Module, 6 Leads
  • MSL Level: 2 (1 year)
  • REACH Status: REACH unaffected
  • HTSUS: 8504.40.9580
  • Other Part Numbers: TDN3-2422WISM and TDN 3-2422WISM-ND
  • Base Product Number: TDN 3
  • ROHS3 Compliant: Yes
