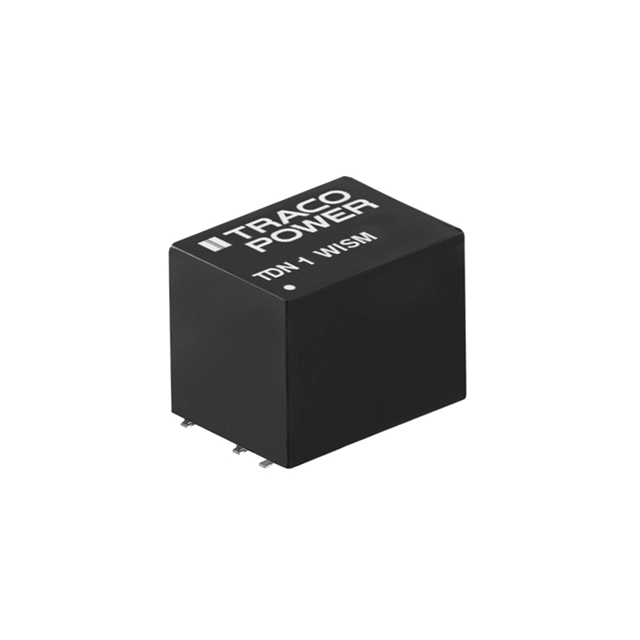

Same model may have multiple batches, images only for reference.

TDN 1-1210WISM

Name: TDN 1-1210WISM
Brand: Traco Power
SKU: 1335392
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TDN 1-1210WISM
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 1W / Isolated Module DC DC Converter 1 Output 3.3V 300mA 4.5V - 18V Input
Datasheet	TDN 1-1210WISM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	18V
Voltage - Output 1	3.3V
Current - Output (Max)	300mA
Power (Watts)	1 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 90°C
Efficiency	77%
Mounting	Surface Mount
Case / Package	7-SMD Module, 6 Leads
Size / Dimension	0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number	TDN 1
RoHS Status	ROHS3 Compliant
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TDN1-1210WISM,TDN 1-1210WISM-ND
Standard Package	10
Win Source Part Number	1335392-TDN 1-1210WISM
Ultra Librarian 3D Model	Ultra Librarian TDN 1-1210WISM CAD Model

Alternative Products

Description

The TDN 1-1210WISM DC-DC converter is an isolated module designed for use in power supplies.

Package: Tube
Standard Package: 10
Mounting Type: Surface mount
Power: 1 W
Isolation Voltage: 1.6 kV
Number of Outputs: 1
Maximum Output Current: 300 mA
Input Voltage Range: 4.5 V to 18 V
Output Voltage: 3.3 V
Efficiency: 77%
Package/Case: 7-SMD module, 6 leads
Operating Temperature Range: -40°C to 90°C
Manufacturer: Traco Power
