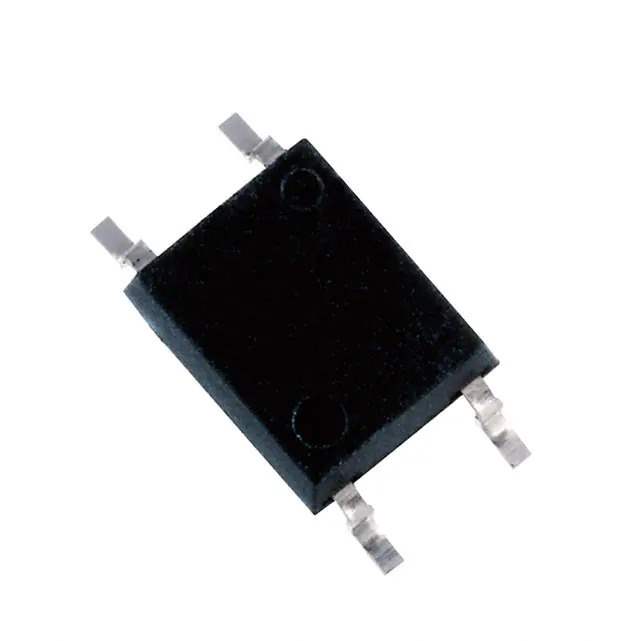

TLX9300(TPL,F Real Image
Same model may have multiple batches, images only for reference.

TLX9300(TPL,F

Part No TLX9300(TPL,F
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Transistor, Photovoltaic Output
Description TR COUPLER; 4-PIN SO6; AECQ; ROH / Optoisolator Transistor Output 3750Vrms 1 Channel 6-SOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr Toshiba Semiconductor and Storage
Series Automotive, AEC-Q101
Package Tape & Reel
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Min) 100% @ 5mA
Current Transfer Ratio (Max) 900% @ 5mA
Turn On / Turn Off Time (Typ) 15µs, 50µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 40V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.25V
Current - DC Forward (If) (Max) 30 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 6-SOIC (0.173", 4.40mm Width) , 4 Leads
Supplier Device Package 6-SOP
Base Product Number TLX9300
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1351761-TLX9300(TPL,F
Ultra Librarian 3D Model Ultra Librarian TLX9300(TPL,F CAD Model

Description

The TLX9300(TPL,F is a photovoltaic output optoisolator from Toshiba Semiconductor and Storage.

  • Package / Case: 6-SOIC (0.173", 4.40mm Width), 4 Leads
  • Current Transfer Ratio (Min): 100% @ 5mA
  • Voltage - Isolation: 3750Vrms
  • Voltage - Output: 40V
  • Automotive: Yes
  • AEC-Q101: Yes
