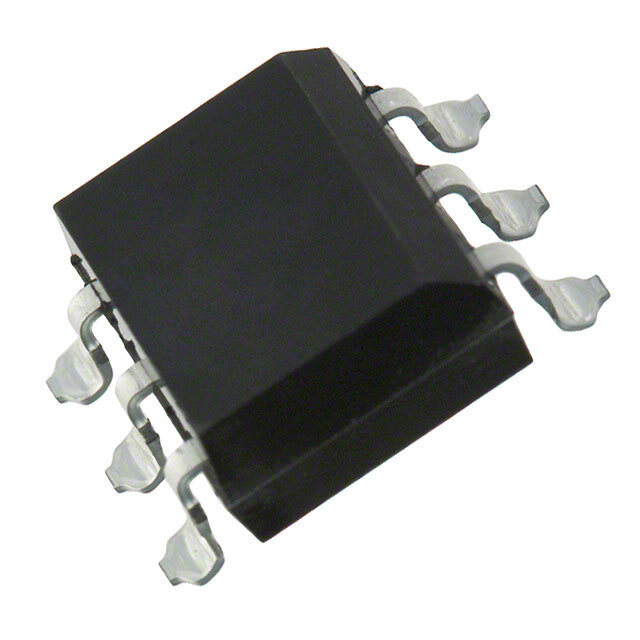

The Toshiba Semiconductor and Storage electronic component, with Win Source Part Number 797079-TLP748J(TP1,F), is a medium popularity product with limited supply and demand status.

• Manufacturer: Toshiba Semiconductor and Storage
• Package: 6-SMD, Gull Wing
• Approvals: BSI, SEMKO, UR
• Operating Temperature Range: -40°C ~ 100°C
• Output Type: SCR
• Voltage - Forward (Vf) (Typ): 1.15V
• Voltage - Off State: 600V
• Channels: One
• Voltage Isolation: 4000Vrms
• Current - Hold (Ih): 1mA
• Turn on Time: 15μs
• Zero Crossing Circuit: Not Available
• Current - On State (It (RMS)) (Maximum): 150mA
• Static dV/dt (Minimum): 5V/μs
• Current - LED Trigger (Ift) (Maximum): 10mA
• Current - DC Forward (If) (Maximum): 50mA
• Alternative Parts (cross-reference): TLP748J(F)
• Introduction Date: November 30, 2008
• ECCN: EAR99
• Country of Origin: Japan
• Estimated EOL Date: 2027
