TLP705A(F) Toshiba Semiconductor and Storage – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

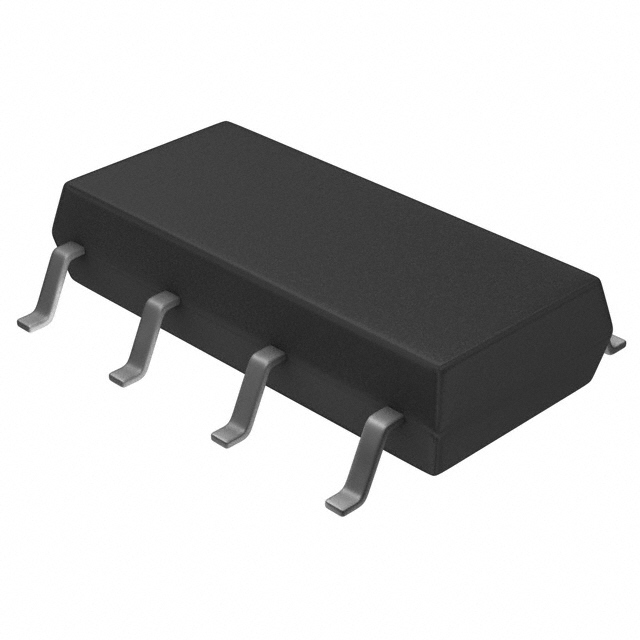

TLP705A(F)

Part No TLP705A(F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Isolators - Gate Drivers
Description OPTOISO 5KV 1CH GATE DVR 6SDIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Technology Optical Coupling
Number of Channels 1
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 20kV/µs
Propagation Delay tpLH / tpHL (Max) 170ns, 170ns
Pulse Width Distortion (Max) 50ns
Rise / Fall Time (Typ) 35ns, 15ns
Current - Output High, Low 400mA, 400mA
Current - Peak Output 600mA
Voltage - Forward (Vf) (Typ) 1.57V
Current - DC Forward (If) (Max) 25 mA
Voltage - Output Supply 10V ~ 30V
Temperature Range - Operating -40°C ~ 100°C
Mounting Type Surface Mount
Case / Package 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package 6-SDIP
Approval Agency cUL, UL
Package Tube
Supply and Demand Status Limited
Win Source Part Number 1502619-TLP705A(F)
Ultra Librarian 3D Model Ultra Librarian TLP705A(F) CAD Model
