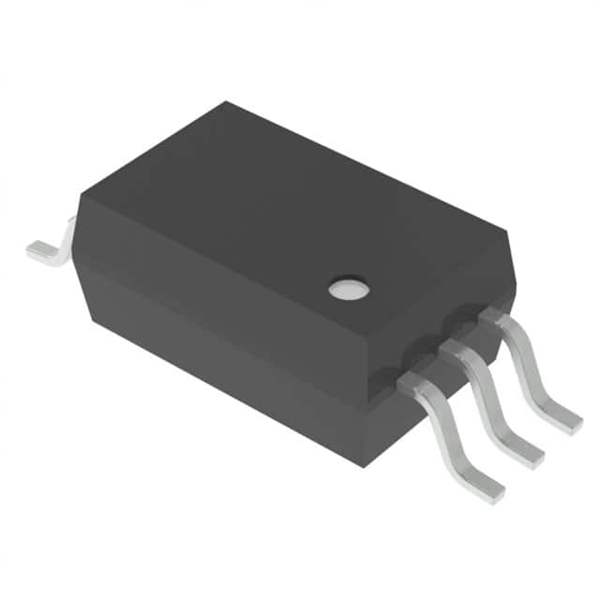

TLP5754(D4,E Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP5754(D4,E

Part No TLP5754(D4,E
Manufacturer Toshiba Semiconductor and Storage
Catalog Isolators - Gate Drivers
Description OPTOISO 5KV 1CH GATE DRIVER 6SO / 4A Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Toshiba Semiconductor and Storage
Package Tube
Technology Optical Coupling
Number of Channels 1
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 35kV/µs
Propagation Delay tpLH / tpHL (Max) 150ns, 150ns
Pulse Width Distortion (Max) 50ns
Rise / Fall Time (Typ) 15ns, 8ns
Current - Output High, Low 3A, 3A
Current - Peak Output 4A
Voltage - Forward (Vf) (Typ) 1.55V
Current - DC Forward (If) (Max) 20 mA
Voltage - Output Supply 15V ~ 30V
Temperature Range - Operating -40°C ~ 110°C
Mounting SMD (SMT)
Package / Case 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package 6-SO
Approval Agency CQC, CSA, cUL, UL, VDE
Base Product Number TLP5754
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Other Names TLP5754(D4,E(O,TLP5754(D4E,TLP5754(D4,E(T,TLP5754D4E
Standard Package 125
Win Source Part Number 1178773-TLP5754(D4,E
Ultra Librarian 3D Model Ultra Librarian TLP5754(D4,E CAD Model

Description

The TLP5754(D4,E optical isolator from Toshiba Semiconductor and Storage is designed to provide high-speed switching for power MOSFETs and IGBTs.

  • Channels: Single
  • Voltage Isolation: 5000Vrms
  • Current Output: 3A
  • DC Forward Current: 20mA
  • Forward Voltage: 1.55V
  • Rise/Fall Time: 15ns/8ns
  • Propagation Delay: 150ns
  • Package: 6-SOIC
  • Temperature Range: -40°C to 110°C
  • Approvals: cUL, UL, VDE, CSA
