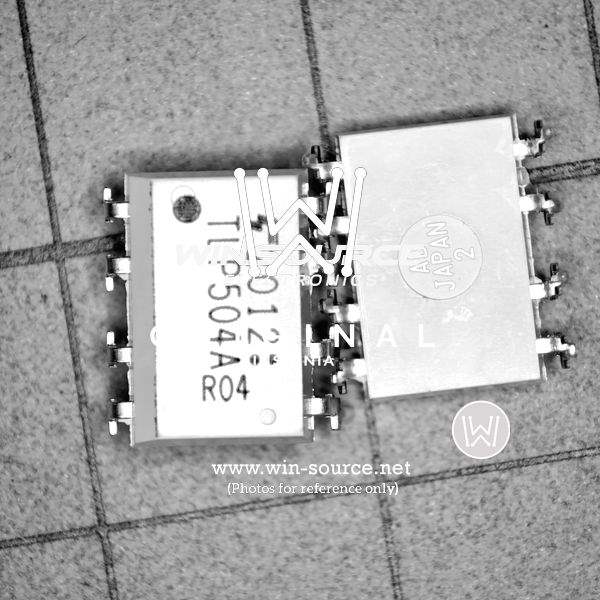

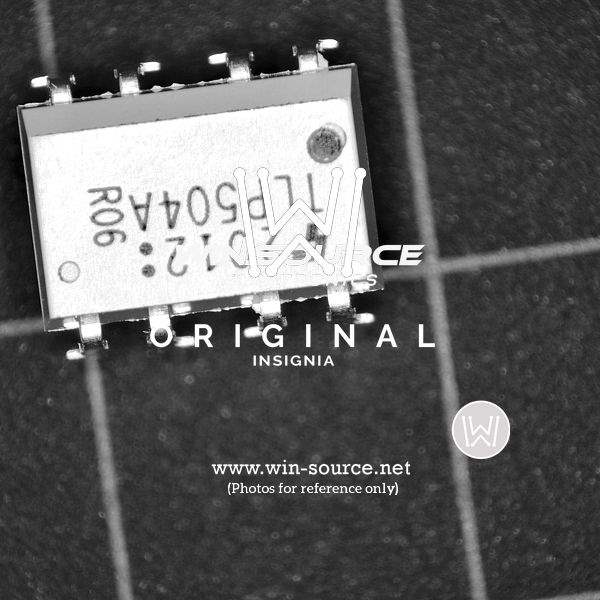

TLP504A Toshiba Semiconductor and Storage TLP504A real image TLP504A Real Image1 TLP504A Real Image2
Same model may have multiple batches, images only for reference.
TLP504A Toshiba Semiconductor and Storage TLP504A real image TLP504A Real Image1 TLP504A Real Image2
TLP504A Toshiba Semiconductor and Storage TLP504A real image TLP504A Real Image1 TLP504A Real Image2
Same model may have multiple batches, images only for reference.

TLP504A

Part No TLP504A
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 2.5KV 4CH TRANS 16-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Tube/Rail
Status Obsolete(EOL)
Number of Channels 4
Isolation Voltage 2500Vrms
Minimum DC Current Transfer Ratio 100% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Switching Turn-On and Turn-Off Time 3μs, 3μs
Rise and Fall Time 2μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 55V
Channel Output Current 50mA
Forward Voltage 1.15V
Continuous forward current- Max 50mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Case / Package 16-DIP
Win Source Part Number 091366-TLP504A
Family Name TLP504A
Introduction Date March 01, 2007
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TLP504A CAD Model

Description

The Toshiba Semiconductor and Storage TLP504A is an electronic component that is used in isolators.

  • Mounting: Through-hole
  • Maximum Vce Saturation: 400mV
  • Minimum DC Current Transfer Ratio: 100% @ 5mA
  • Maximum DC Current Transfer Ratio: 600% @ 5mA
  • Switching Turn-On Time: 3μs
  • Switching Turn-Off Time: 3μs
  • Rise Time: 2μs
  • Fall Time: 3μs
  • Family Name: TLP504A
  • Category: Isolators
  • Popularity: High
  • Manufacturer: Toshiba Semiconductor and Storage
  • Part Number: 091366-TLP504A
