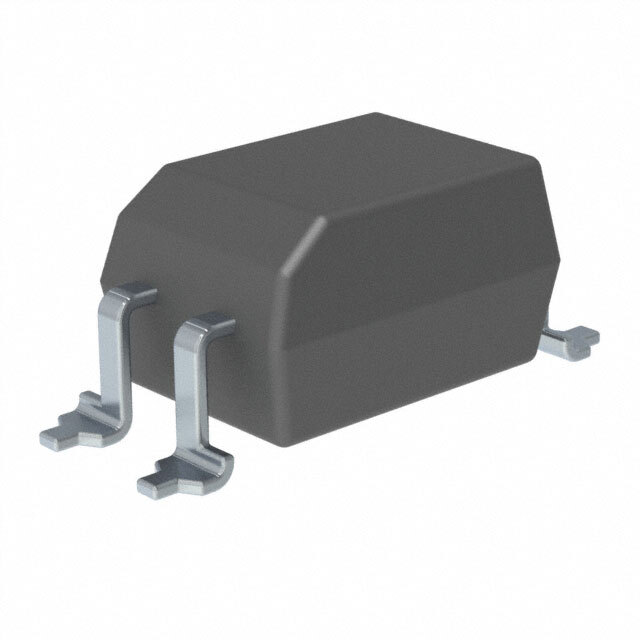

Same model may have multiple batches, images only for reference.
TLP3556A(TP1,F Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP3556A(TP1,F

Part No TLP3556A(TP1,F
Manufacturer Toshiba Semiconductor and Storage
Catalog Solid State Relays
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr Toshiba Semiconductor and Storage
Series TLP3556A
Package Tape & Reel
Mounting SMD (SMT)
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.64VDC
Voltage - Load 0 V ~ 100 V
Load Current 2 A
On-State Resistance (Max) 200 mOhms
Termination Style Gull Wing
Package / Case 4-SMD (0.300", 7.62mm)
Supplier Device Package 4-SMD
Base Product Number TLP3556
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1314664-TLP3556A(TP1,F
Ultra Librarian 3D Model Ultra Librarian TLP3556A(TP1,F CAD Model

Description

The Toshiba Semiconductor and Storage component with the Win Source Part Number 1314664-TLP3556A(TP1,F is a solid-state relay with a termination style of gull-wing.

  • Win Source Part Number: 1314664-TLP3556A(TP1,F
  • Termination Style: Gull-Wing
  • Packaging: Tape & Reel
  • Mounting Style: SMD (SMT)
  • Voltage Input: 1.64VDC
  • Output Type: AC, DC
  • Circuit: SPST-NO (1 Form A)
  • On-State Resistance (Max): 200 mOhms
  • Load Current: 2 A
  • Voltage-Load: 0 V ~ 100 V
  • Package / Case: 4-SMD (0.300", 7.62mm)
  • Supplier Device Package: 4-SMD
