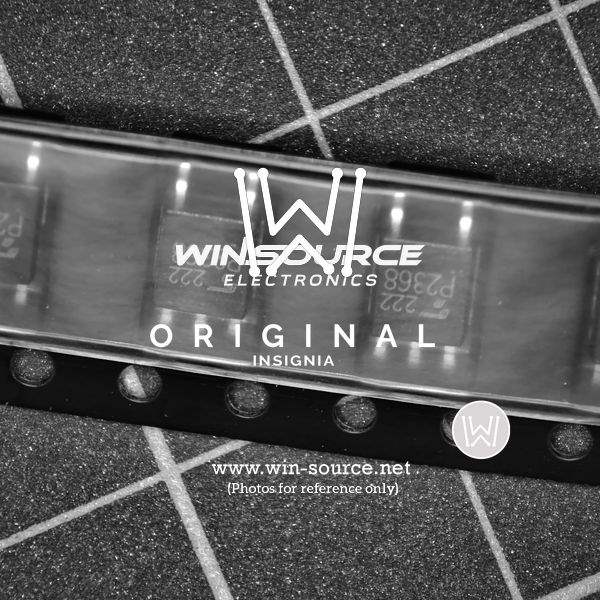

TLP2368 Toshiba Semiconductor and Storage TLP2368 Real Image
Same model may have multiple batches, images only for reference.
TLP2368 Toshiba Semiconductor and Storage TLP2368 Real Image
TLP2368 Toshiba Semiconductor and Storage TLP2368 Real Image
Same model may have multiple batches, images only for reference.

TLP2368

Part No TLP2368
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Logic Output
Description OPTOISO 3.75KV OPEN COLL SO6-5
Datasheet
TLP2368 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Tube/Rail
Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 3750Vrms
Common Mode Transient Immunity (Min) 20kV/μs
Input Type DC
Output Type Open Collector
Channel Output Current 25mA
Data Rate 20MBd
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Rise and Fall Time 30ns, 30ns
Forward Voltage 1.55V
Continuous forward current- Max 25mA
Supply Voltage - Operating 2.7 V to 5.5 V
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package 6-SO, 5 Lead
Win Source Part Number 101458-TLP2368
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TLP2368 CAD Model

Description

The Toshiba Semiconductor and Storage TLP2368 is an active electronic component designed for use in isolator applications.

  • Channels: 1-channel
  • Output Type: open collector
  • Data Rate: 20MBd
  • Common Mode Transient Immunity: 20kV/μs
  • Isolation Voltage: 3750Vrms
  • Supply Voltage: 2.7 V to 5.5 V
  • Package: 6-SO, 5 Lead
  • Maximum Propagation Delay: 60 ns
  • Rise and Fall Time: 30 ns
