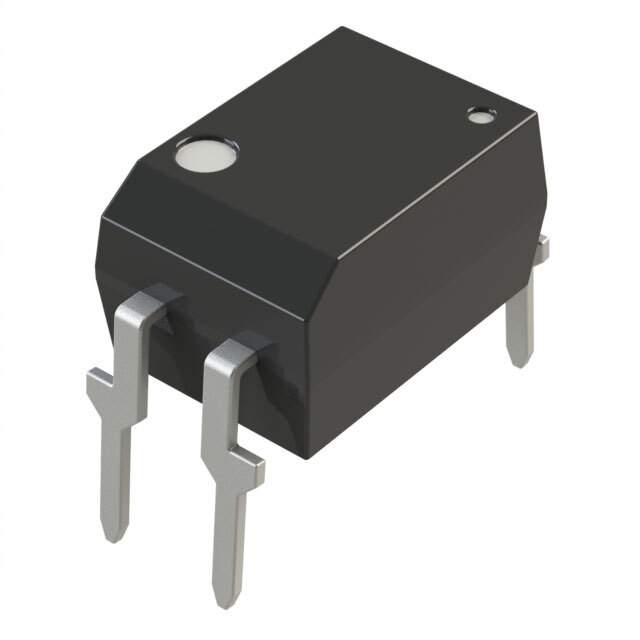

The TLP220D is a Photocoupler manufactured by Toshiba Semiconductor and Storage. It is designed for electrical isolation between circuits, particularly in applications where noise immunity and safety are critical. The device consists of an infrared LED and a phototransistor, providing galvanic isolation while allowing signals to be transferred.

Applications

• Programmable Logic Controllers (PLCs): Provides isolation between the control circuitry and the input/output modules.
• Inverter circuits: Isolates the control section from the high-voltage power section.
• AC servo drives: Provides isolation in motor control systems.
• Switching power supplies: Offers isolation between the primary and secondary sides of the power supply.
• Digital interfaces for microprocessors: Isolates microprocessors from external circuits, protecting them from voltage spikes and noise.

Features

• High isolation voltage: Offers strong electrical isolation between the input and output (typically 3750 Vrms or higher).
• Compact package: Allows for space-saving designs.
• High current transfer ratio (CTR): Ensures efficient signal transmission.
• Low input current: Reduces power consumption in the input circuit.
• RoHS Compliant: Meets environmental regulations by restricting hazardous substances.

Benefits

• Improved safety: Provides electrical isolation, protecting circuits and users from high voltage and transient surges.
• Enhanced noise immunity: Isolates circuits from noise and ground loops, improving signal integrity.
• Simplified circuit design: Reduces the need for complex grounding schemes.
• Increased system reliability: Protects sensitive components from damage caused by electrical disturbances.

Additional Details

The TLP220D Photocoupler consists of a gallium arsenide (GaAs) infrared emitting diode optically coupled to a silicon phototransistor. When current flows through the LED, it emits infrared light, which activates the phototransistor. The phototransistor then conducts, allowing current to flow through the output circuit.

Important electrical specifications include the forward voltage of the LED (VF), the forward current of the LED (IF), the collector-emitter voltage of the phototransistor (VCEO), and the collector current (IC). The current transfer ratio (CTR) is a key parameter that indicates the ratio of the output current (IC) to the input current (IF). The datasheet should be consulted for detailed information on these parameters and other characteristics, such as switching speed and temperature ratings.
