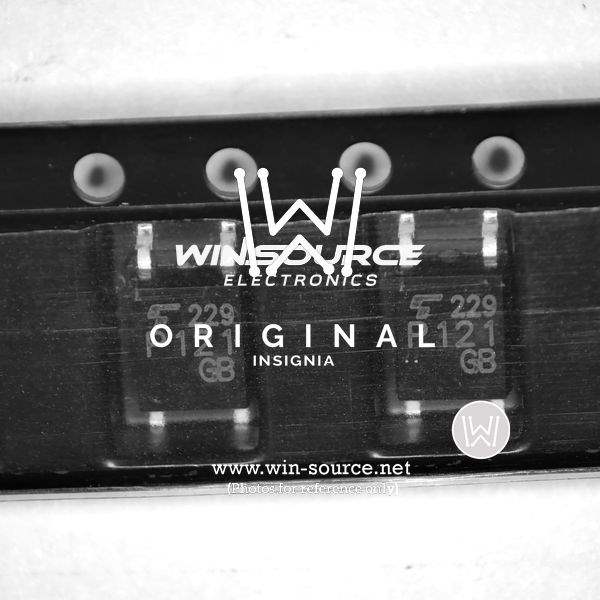

TLP121(GB-TPL,F) Toshiba Semiconductor and Storage TLP121(GB-TPL,F) Real Image
Same model may have multiple batches, images only for reference.
TLP121(GB-TPL,F) Toshiba Semiconductor and Storage TLP121(GB-TPL,F) Real Image
TLP121(GB-TPL,F) Toshiba Semiconductor and Storage TLP121(GB-TPL,F) Real Image
Same model may have multiple batches, images only for reference.

TLP121(GB-TPL,F)

Part No TLP121(GB-TPL,F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOCOUPLER TRANS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr Toshiba Semiconductor and Storage
Package Tape & Reel
Product Status Obsolete
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Min) 100% @ 5mA
Current Transfer Ratio (Max) 600% @ 5mA
Turn On / Turn Off Time (Typ) 3µs, 3µs
Rise / Fall Time (Typ) 2µs, 3µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Surface Mount
Package / Case 6-SMD (4 Leads), Gull Wing
Supplier Device Package 6-MFSOP, 4 Lead
Base Product Number TLP121
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 370029-TLP121(GB-TPL,F)
Ultra Librarian 3D Model Ultra Librarian TLP121(GB-TPL,F) CAD Model

Description

The 370029-TLP121(GB-TPL,F) is a photovoltaic output optoisolator from Toshiba Semiconductor and Storage.

  • Category: Isolators - Optoisolators - Transistor
  • Sub-Category: Transistor
  • Output Type: transistor
  • Input Type: DC
  • Forward Current (If): 50mA
  • Forward Voltage (Vf): 1.15V
  • Rise Time: 2μs
  • Fall Time: 3μs
  • Voltage Isolation: 3750Vrms
  • Current Transfer Ratio (Min): 100% @ 5mA
  • Maximum Output Voltage: 80V
  • Vce Saturation (Max): 400mV
  • Turn-On Time: 3μs
  • Turn-Off Time: 3μs
  • Package: 6-SMD (4 Leads), Gull Wing
  • Mounting: Surface Mountable
  • Operating Temperature: -55°C to 100°C
  • Market Status: Obsolete
