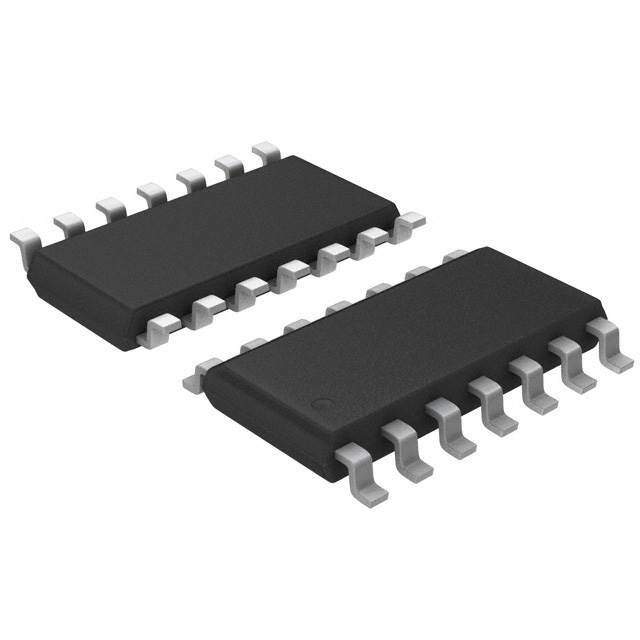

The TC4584BF is a hex Schmitt trigger inverter from Toshiba Semiconductor and Storage. This integrated circuit is designed to perform the logical inversion of input signals with Schmitt trigger action. This means it has different threshold voltages for rising and falling input signals, providing hysteresis, which significantly improves noise immunity and signal conditioning. The TC4584BF is commonly used in a wide array of digital logic applications where signal integrity is crucial.

Applications

• Wave shaping: Used to convert slowly changing or noisy signals into clean, fast digital signals.
• Threshold detection: Provides precise switching at defined voltage levels, useful in sensor circuits.
• Oscillators: Can be configured into relaxation oscillators for timing circuits.
• Monostable multivibrators: Implements single-shot pulse generators for control systems.
• Digital Logic Buffering: In situations where signal driving capability needs to be improved or signal polarity needs to be inverted.

Features

• Hex Inverter: Contains six independent inverters in a single package.
• Schmitt Trigger Input: Hysteresis improves noise immunity.
• Wide Operating Voltage: Supports a broad range of supply voltages, making it versatile for different applications.
• Low Power Consumption: Suitable for battery-powered and energy-efficient designs.
• Standard DIP Package: Easy to prototype and breadboard.

Benefits

• Improved Noise Immunity: The Schmitt trigger inputs filter out noise and prevent false triggering.
• Signal Conditioning: Cleans up noisy or distorted signals for reliable digital processing.
• Versatile: Can be used in a wide range of applications due to its flexible operating characteristics.
• Easy to Use: Standard DIP package simplifies prototyping and integration into existing circuits.
• Cost-Effective: Provides six inverters in a single package, reducing component count and cost.

Additional Details

The TC4584BF is typically available in a 14-pin DIP (Dual In-line Package). Key electrical characteristics include its input voltage range, supply voltage range, and propagation delay. The propagation delay specifies the time it takes for a signal to propagate through the inverter. The hysteresis voltage defines the difference between the positive-going and negative-going threshold voltages. It's important to consult the datasheet for specific operating conditions and absolute maximum ratings to ensure proper operation and prevent damage to the device. The device is commonly used with a 5V or 12V power supply, though it can handle a wider voltage range as defined in the datasheet. The output is a standard CMOS output, capable of driving a certain amount of current, which is also detailed in the datasheet.
