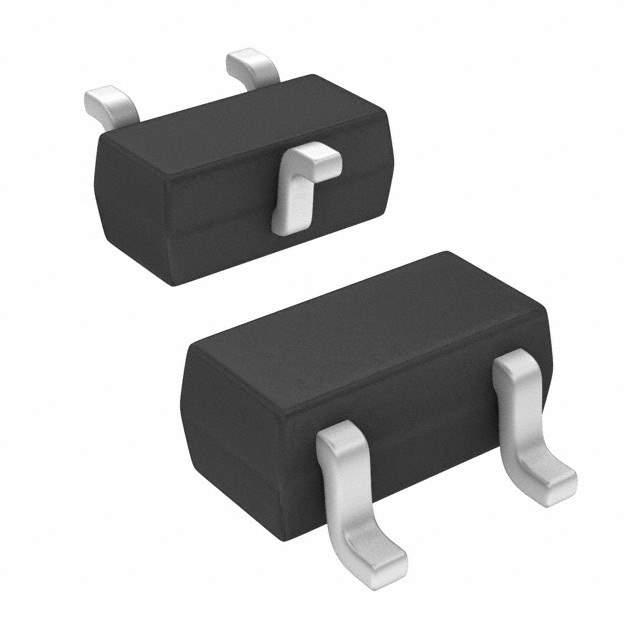

The SSM3J15FS is a P-channel MOSFET from Toshiba Semiconductor and Storage, primarily used for load switching applications and high-side switching. It's known for its low on-resistance, contributing to energy efficiency in various electronic devices. The small package size is also beneficial for compact designs.

Applications

• Load Switches: Controlling power to various circuits in portable devices.
• High-Side Switches: Power management circuits that require switching the high-side voltage.
• DC-DC Converters: Voltage regulation in a wide range of applications.
• Battery-Powered Devices: Power management systems in smartphones, tablets, and other portable devices.

Features

• Low On-Resistance (RDS(ON)): Minimizes power loss and improves efficiency.
• Low Threshold Voltage (Vth): Allows for operation with low gate drive voltage.
• Small Package (SOT-23): Enables compact and space-saving designs.
• High-Speed Switching: Facilitates faster response times in switching applications.
• Pb-free and RoHS compliant: Environmentally friendly.

Benefits

• Enhanced Efficiency: Reduced power dissipation due to low on-resistance leads to higher efficiency.
• Extended Battery Life: Lower power consumption contributes to prolonged battery life in portable devices.
• Miniaturized Designs: The small package allows for smaller and more compact electronic circuits.
• Improved System Performance: Fast switching characteristics enhance the overall system performance.
• Environmentally Responsible: RoHS compliance ensures adherence to environmental standards.

Additional Details

The SSM3J15FS has a drain-source voltage (VDSS) rating of -20V and a gate-source voltage (VGSS) rating of ±20V. It can handle a continuous drain current (ID) of -1.5A. The power dissipation (PD) is 0.5W. The operating and storage temperature range is -55°C to 150°C. It is available in a SOT-23 package. The low gate charge (Qg) contributes to its fast switching speed. The device's thermal resistance is low, ensuring efficient heat dissipation. The SSM3J15FS is designed for applications where both power efficiency and space are critical factors.
