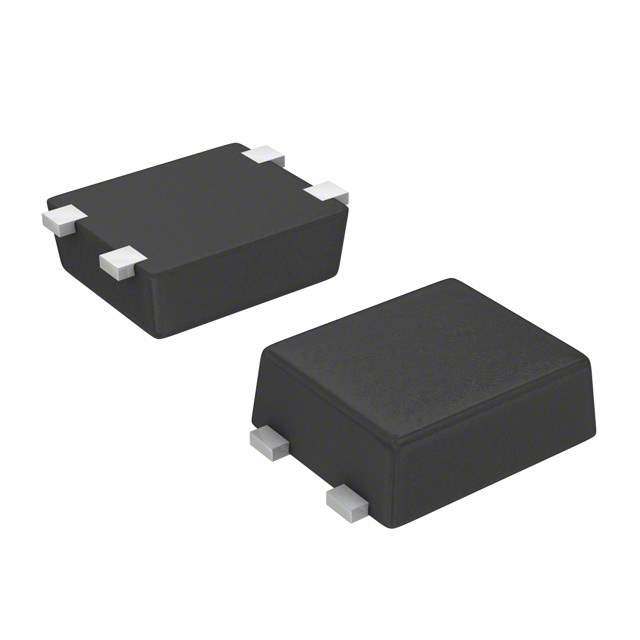

The HN2S03T is a silicon epitaxial planar type diode array from Toshiba Semiconductor and Storage, featuring two diodes in a single package. This configuration is commonly used for rectification and switching applications, offering space-saving benefits and simplifying circuit layouts.

Applications

• High-speed switching circuits
• Rectification circuits
• Signal detection
• Clipping and clamping circuits
• Protection circuits
• DC-DC converters

Features

• Dual diode configuration: Provides two diodes in a single package, saving board space.
• Low forward voltage: Minimizes power loss and improves efficiency.
• Fast reverse recovery time: Enables high-speed switching.
• High reliability: Ensures stable performance under various operating conditions.
• Surface-mount package: Facilitates automated assembly and high-density mounting.

Benefits

• Reduced component count: By integrating two diodes into one package.
• Improved circuit efficiency: Due to low forward voltage drop.
• Reduced space requirements: Thanks to the compact surface-mount package.
• Enhanced switching performance: Enabled by the fast reverse recovery time.
• Increased system reliability: Due to the diode's robust construction.

Additional Details

The HN2S03T diode array is designed for various applications requiring two diodes. Each diode features a low forward voltage drop (typically around 0.4V) and a fast reverse recovery time. It is housed in a small surface-mount package for easy integration into modern electronic designs. The maximum repetitive peak reverse voltage is typically around 80V and the maximum forward current per diode is in the range of 100-200mA, depending on the specific datasheet. This part is often used in applications where board space is limited and high-speed switching is required.
