Same model may have multiple batches, images only for reference.

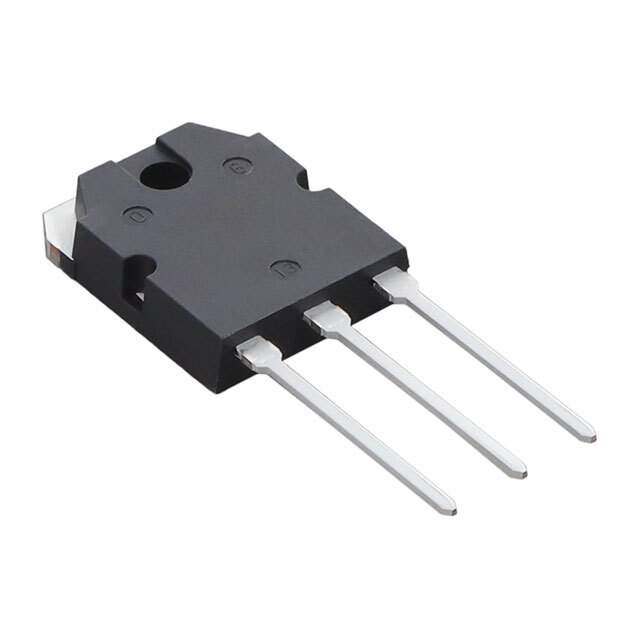

GT40QR21(STA1,E,D Real Image
Same model may have multiple batches, images only for reference.

GT40QR21(STA1,E,D

Part No GT40QR21(STA1,E,D
Manufacturer Toshiba Semiconductor and Storage
Catalog OEM Parts (F - I)
Description Trans IGBT Chip N-CH 1200V 40A 230000mW 3-Pin(3+Tab) TO-3PN Magazine
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Collector Emitter Voltage (VCEO) 1.2 kV
Element Configuration Single
Max Collector Current 40 A
Maximum Operating Temperature 175 °C
Min Operating Temperature -55 °C
Mount Through Hole
Number of Pins 3
Radiation Hardening No
RoHS Compliant
Win Source Part Number 996445-GT40QR21(STA1,E,D
Categories OEM Parts(F-I)
Manufacturer Toshiba Semiconductor and Storage
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian GT40QR21(STA1,E,D CAD Model

Description

The supply and demand status is short.

  • Pins: three-pin device
  • Collector Emitter Voltage: 1.2kV
  • Maximum Collector Current: 40A
  • Maximum Operating Temperature: 175°C
  • Operating Temperature Range: -55°C to 175°C
