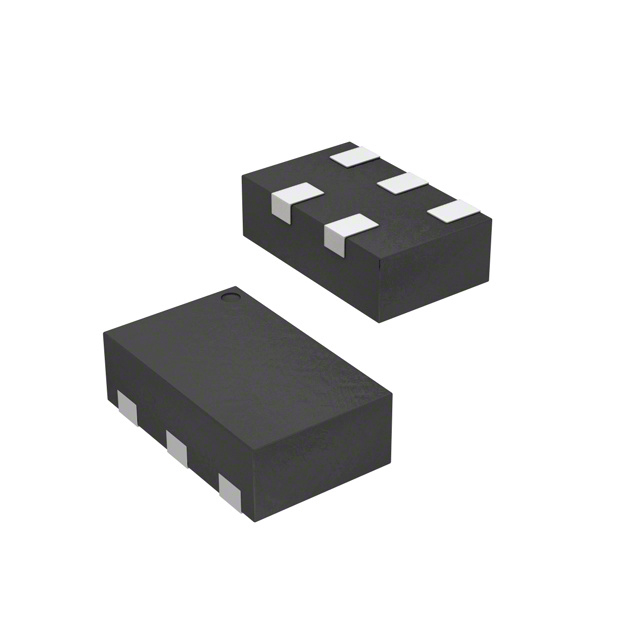

Same model may have multiple batches, images only for reference.
DF5G7M2N,LF
Same model may have multiple batches, images only for reference.

DF5G7M2N,LF

Part No DF5G7M2N,LF
Manufacturer Toshiba Semiconductor and Storage
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 20VC 5DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Features 20V Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount 5-DFN (1.3x0.8)
Manufacturer Toshiba Semiconductor and Storage
Package Reel - TR
Part Status Obsolete
Mounting Surface Mount
Package 5-XFDFN
Case / Package 5-DFN (1.3x0.8)
Family Name DF5G7M2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number DF5G7M2NLF, DF5A6.2JELM(B, DF5G7M2NLFDKR, DF5A6.2JELM, DF5G7M2NLFTR, DF5G7M2NLFCT, DF5G7M2N,LF(D
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868606-DF5G7M2N,LF
Ultra Librarian 3D Model Ultra Librarian DF5G7M2N,LF CAD Model

Description

The Toshiba Semiconductor and Storage DF5G7M2NLF is a surface mount TVS diode designed for circuit protection.

  • Clamp Voltage: 20V
  • Ipp: 2.5A (8/20µs)
  • Package: 5-XFDFN
  • Mounting: Reel
  • Status: Obsolete
  • Supply and Demand Status: Limited
  • Family Name: DF5G7M2
  • Category: Circuit Protection
  • ECCN: EAR99
  • HTSUS Code: 8541.10.0080
  • Part Numbers: DF5G7M2NLF, DF5A6.2JELM(B, DF5G7M2NLFDKR, DF5A6.2JELM, DF5G7M2NLFTR, DF5G7M2NLFCT, DF5G7M2N,LF(D}
  • Manufacturer: Toshiba Semiconductor and Storage
