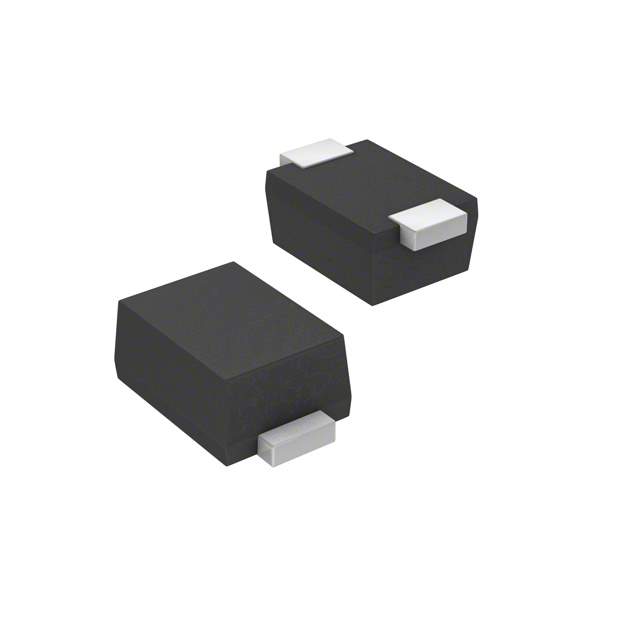

The DF2S24FS is a transient voltage suppressor (TVS) diode manufactured by Toshiba Semiconductor and Storage. It is designed to protect sensitive electronic components from voltage transients induced by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning surges. This diode offers a fast response time and low clamping voltage, ensuring effective protection for downstream circuits.

Applications

• Protection of I/O interfaces in consumer electronics
• Protection of data lines in communication equipment
• Protection of control circuits in industrial equipment
• ESD protection for portable devices like smartphones and tablets
• Surge protection for automotive electronics

Features

• Low clamping voltage
• Fast response time
• Small surface mount package
• High surge current capability
• RoHS compliant

Benefits

• Enhanced reliability of electronic systems
• Reduced risk of damage from voltage transients
• Improved system uptime
• Compact design for space-constrained applications
• Compliance with environmental regulations

Specifications

The DF2S24FS features a reverse stand-off voltage of 24V and a peak pulse power dissipation of typically around 100W, depending on the test conditions. It is typically available in a small surface mount package, such as a SOD-923 or similar, for easy integration into circuit boards. The diode's low clamping voltage ensures that the voltage seen by the protected circuit remains within safe operating limits during a transient event. The fast response time enables the diode to quickly clamp transient voltages, preventing damage to sensitive components. This device is designed to meet industry standards for ESD and surge protection.
