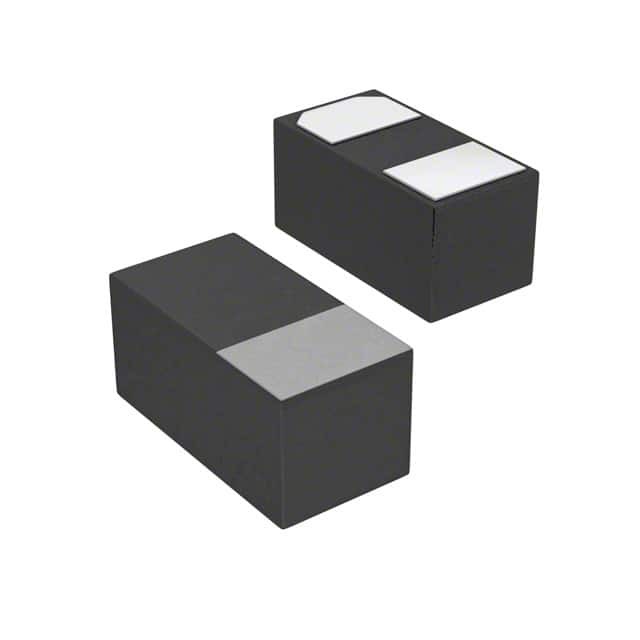

Same model may have multiple batches, images only for reference.
DF2B12M2SC,L3F Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

DF2B12M2SC,L3F

Part No DF2B12M2SC,L3F
Manufacturer Toshiba Semiconductor and Storage
Catalog TVS - Diodes
Description TVS DIODE 8VWM 18VC SC2 / 18V (Typ) Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SC2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Toshiba Semiconductor and Storage
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 8V (Max)
Voltage - Breakdown (Min) 10V
Voltage - Clamping (Max) @ Ipp 18V (Typ)
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 0.2pF @ 1MHz
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Supplier Device Package SC2
Base Product Number DF2B12
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names DF2B12M2SC,L3F(T,DF2B12M2SC,L3F(B,DF2B12M2SCL3FTR,DF2B12M2SCL3FCT,DF2B12M2SCL3FDKR
Standard Package 10,000
Win Source Part Number 1113709-DF2B12M2SC,L3F
Ultra Librarian 3D Model Ultra Librarian DF2B12M2SC,L3F CAD Model

Description

The DF2B12M2SC,L3F is a Zener type TVS diode designed for surface mount applications. It is rated for a reverse standoff voltage of 8V and has a breakdown voltage of 10V.

  • Type: Zener TVS Diode
  • Manufacturer: Toshiba Semiconductor and Storage
  • Mounting Type: Surface Mount
  • Reverse Standoff Voltage: 8V
  • Breakdown Voltage: 10V
  • Capacitance: 0.2pF @ 1MHz
  • Current Rating: 1A (8/20μs)
  • Polarity: Bidirectional
  • Clamping Voltage: 18V (typ) @ Ipp
  • Packaging: Tape and Reel
  • Package: 2-SMD, no lead
  • Temperature Range: Not Specified
