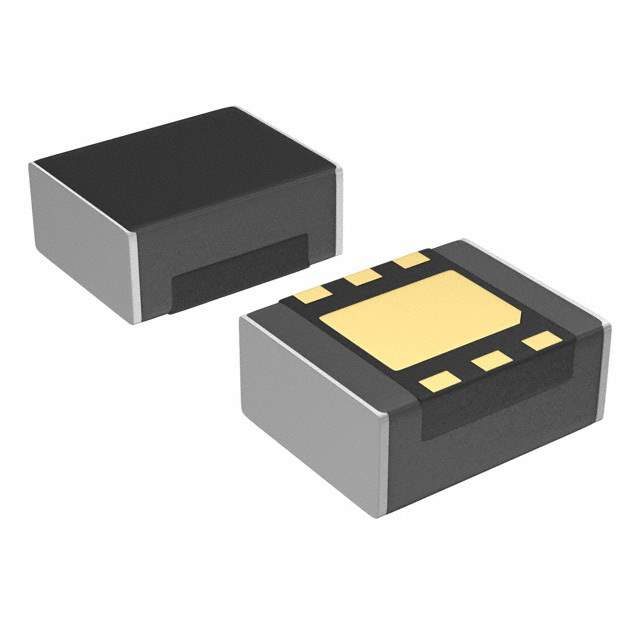

Same model may have multiple batches, images only for reference.

XCL222B181ER-G

Name: XCL222B181ER-G
Brand: Torex Semiconductor Ltd
SKU: 1336467
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	XCL222B181ER-G
Manufacturer	Torex Semiconductor Ltd
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 1.8V / Non-Isolated PoL Module DC DC Converter 1 Output 1.8V 500mA 2.5V - 5.5V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Torex Semiconductor Ltd
Packaging	Reel - TR
Product Status	Obsolete
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	1.8V
Current - Output (Max)	500mA
Applications	ITE (Commercial)
Features	OCP, OTP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 105°C
Efficiency	93%
Mounting	Surface Mount
Case / Package	8-SMD
Size / Dimension	0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm)
Base Product Number	XCL222
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Other Part Number	893-1291-1,893-1291-2,893-1291-6
Standard Package	3,000
Win Source Part Number	1336467-XCL222B181ER-G
Ultra Librarian 3D Model	Ultra Librarian XCL222B181ER-G CAD Model

Alternative Products

Description

The XCL222B181ER-G is a non-isolated PoL module manufactured by Torex Semiconductor Ltd.

Applications: Power supplies and board mount DC-DC converters for commercial applications.
Protection Features: Overcurrent protection (OCP), overtemperature protection (OTP), short circuit protection (SCP), and undervoltage lockout (UVLO).
Maximum Current Output: 500mA.
Efficiency: 93%.
Packaging: Reel - TR format.
Size: 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm).
